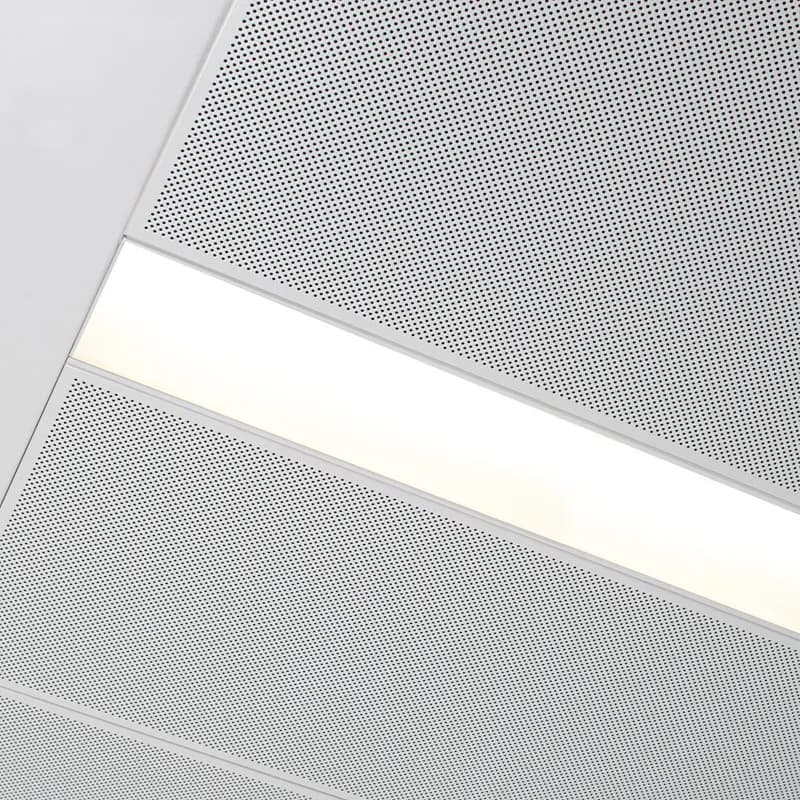

Stratos-K 100

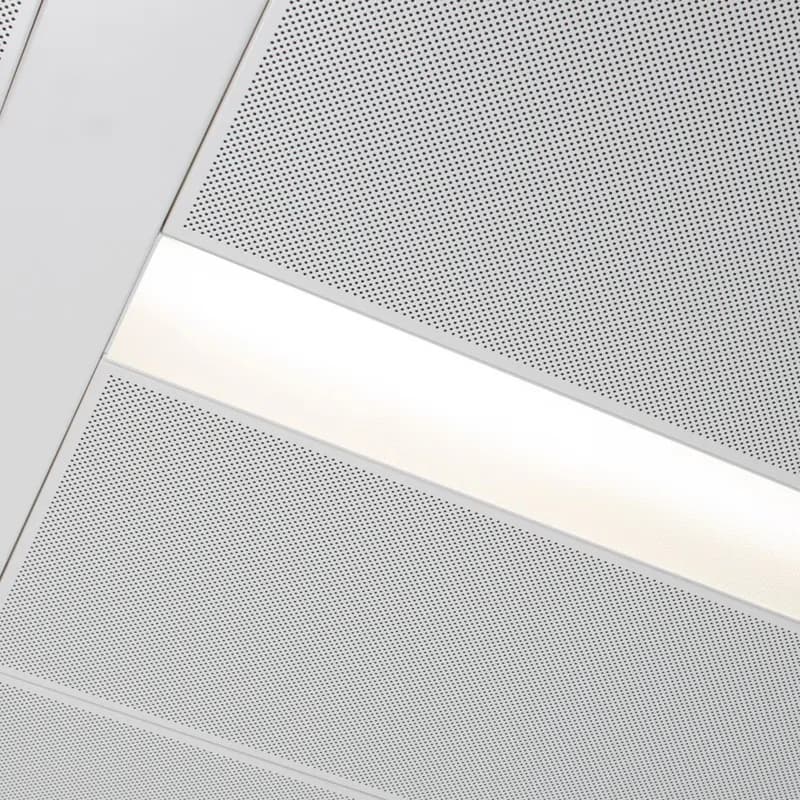

Stratos-K 100 – Image 2
Infinity

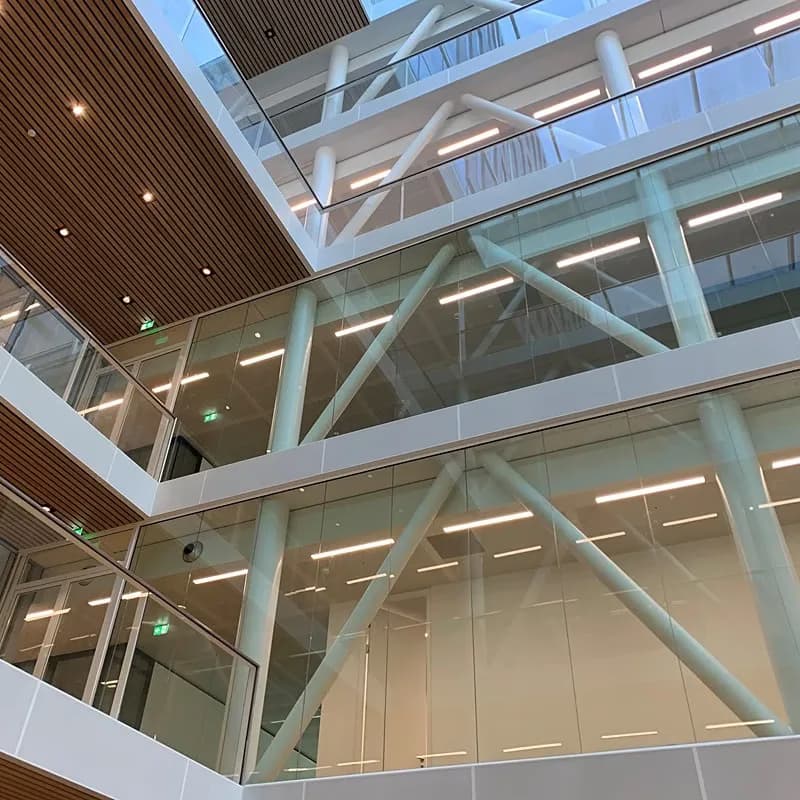

Stratos-K 100 – Image 4
Fusion-BM
Fusion-K
Stratos-K 100 – Image 7
Stratos-K100-c
Stratos-K100-b
Stratos-K100-a

Stratos-K 100

Le Stratos-K 100 est un luminaire LED linéaire conçu pour une utilisation dans les plafonds climatiques avec des grilles apparentes. Le luminaire est protégé par une lentille microprismatique (avec un UGR<19 pour les applications de bureau selon la norme NEN-EN 12.464/1).

  • Construction en aluminium thermolaqué
  • Équipé d’une lentille prismatique (UGR<19)
  • Versions à blanc variable ou à éclairage mélanopique disponibles
  • Le montage par crochet en C facilite l’installation
  • Convient pour une utilisation dans les bureaux, les écoles, les centres de soins et autres établissements publics.
Ajoutez ce produit à ma demande de devis.
Catégorie : Étiquette : Marque :
Créez votre propre fichier PDF avec toutes les spécifications.

La description

Le Stratos-K 100 est un luminaire LED linéaire conçu pour une application dans des plafonds climatiques avec trames apparentes. Le luminaire se compose d’un profilé en aluminium extrudé qui fait également office de réflecteur. La partie inférieure du luminaire est protégée par une lentille microprismatique (avec un UGR < 19 pour les applications de bureau selon la norme NEN-EN 12464-1).

Les extrémités sont équipées dun panneau de finition avec crochet en C pour le montage dans les profilés porteurs. La longueur totale peut être spécifiée entre 900 mm et 1 720 mm. La partie lumineuse est disponible dans des longueurs allant de 565 à 2 240 mm.

Une option dextraction par plénum est disponible. De plus, un large choix de capteurs est proposé, notamment des capteurs pour la régulation de la lumière du jour et la détection de présence.

Ces luminaires conviennent parfaitement aux bureaux, écoles, établissements de santé et autres espaces publics.

Informations complémentaires

Extraction d'air

Efficacité du luminaire

Confirmation

Largeur

Code de flux CIE

Position du driver

,

Étiquette énergétique

Famille

Sécurité photobiologique

Éblouissement (UGR)

Classe IP

Classe d’isolation

Cohérence des couleurs (SDCM)

Température de couleur

, , , ,

Indice de rendu des couleurs (IRC)

,

Longueur

Contrôle de l’éclairage

, , ,

Luchtafzuiging

Optioneel

Matériau

,

Éclairage de secours

, ,

Température ambiante

Optique

,

Orientation

Dimensions de l’emballage

Facteur de puissance

Connexions primaires

, , , , ,

Couleur du produit

Application du produit

, , ,

Housse anti-poussière autocollante

Verpakkingsafmetingen

Bulkverpakking

Durée de vie prévue

Voltage / frequentie

Forme

Zelfklevende stofkap

Optioneel

Données photométriques

19.840 Stratos-K 100 2S 5W 700lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 6W 900lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 8W 1300lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 9W 1500lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 11W 1600lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 12W 1900lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 13W 2200lm 4000K CRI80 G7
19.840 Stratos-K 100 2S 16W 2300lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 8W 1100lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 10W 1400lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 13W 1900lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 15W 2200lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 18W 2500lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 21W 2900lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 24W 3300lm 4000K CRI80 G7
19.840 Stratos-K 100 3S 28W 3500lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 10W 1500lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 13W 1900lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 18W 2600lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 21W 2900lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 24W 3300lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 28W 3800lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 32W 4300lm 4000K CRI80 G7
19.840 Stratos-K 100 4S 35W 4700lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 13W 1900lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 15W 2300lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 18W 3200lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 21W 3700lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 24W 4100lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 28W 4800lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 32W 5400lm 4000K CRI80 G7
19.840 Stratos-K 100 5S 35W 5800lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 15W 2200lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 18W 2800lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 20W 3900lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 23W 4400lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 28W 4900lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 32W 5700lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 34W 6500lm 4000K CRI80 G7
19.840 Stratos-K 100 6S 37W 7000lm 4000K CRI80 G7
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×565.2S Stratos-K 100 6W 900lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 9W 1300lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 10W 1500lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 11W 1600lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 13W 1800lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 15W 2100lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 21W 2800lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 24W 3100lm 3000K CRI80 G8
30.830K.100×845.3S Stratos-K 100 28W 3600lm 3000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 9W 1400lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 10W 1500lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 11W 1600lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 13W 1900lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 15W 2100lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 21W 2800lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 24W 3100lm 4000K CRI80 G8
30.840K.100×845.3S Stratos-K 100 28W 3600lm 4000K CRI80 G8
30.930K.100×845.3S Stratos-K 100 9W 1000lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 10W 1100lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 11W 1300lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 13W 1500lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 15W 1700lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 21W 2200lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 24W 2500lm 3000K CRI90 G8
30.930K.100×845.3S Stratos-K 100 28W 2900lm 3000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 9W 1100lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 10W 1300lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 11W 1500lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 13W 1700lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 15W 1900lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 21W 2500lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 24W 2800lm 4000K CRI90 G8
30.940K.100×845.3S Stratos-K 100 28W 3300lm 4000K CRI90 G8
30.830K.100×1125.4S Stratos-K 100 13W 1800lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 14W 1900lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 15W 2100lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 18W 2400lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 21W 2800lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 28W 3600lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 32W 4100lm 3000K CRI80 G8
30.830K.100×1125.4S Stratos-K 100 38W 4700lm 3000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 13W 1900lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 14W 2100lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 15W 2300lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 18W 2600lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 21W 3000lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 28W 3900lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 32W 4400lm 4000K CRI80 G8
30.840K.100×1125.4S Stratos-K 100 38W 5100lm 4000K CRI80 G8
30.930K.100×1125.4S Stratos-K 100 13W 1400lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 14W 1600lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 15W 1700lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 18W 2000lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 21W 2300lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 28W 2900lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 32W 3300lm 3000K CRI90 G8
30.930K.100×1125.4S Stratos-K 100 38W 3900lm 3000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 13W 1600lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 14W 1800lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 15W 1900lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 18W 2200lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 21W 2600lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 28W 3300lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 32W 3800lm 4000K CRI90 G8
30.940K.100×1125.4S Stratos-K 100 38W 4400lm 4000K CRI90 G8
30.830K.100×1405.5S Stratos-K 100 16W 2200lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 17W 2400lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 19W 2600lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 22W 3100lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 26W 3500lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 27W 3600lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 31W 4100lm 3000K CRI80 G8
30.830K.100×1405.5S Stratos-K 100 37W 4800lm 3000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 15W 2300lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 17W 2500lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 19W 2700lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 22W 3100lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 26W 3500lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 28W 4600lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 31W 4200lm 4000K CRI80 G8
30.840K.100×1405.5S Stratos-K 100 37W 4900lm 4000K CRI80 G8
30.930K.100×1405.5S Stratos-K 100 13W 1400lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 14W 1600lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 15W 1700lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 18W 2000lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 20W 2300lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 27W 3000lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 31W 3400lm 3000K CRI90 G8
30.930K.100×1405.5S Stratos-K 100 37W 3900lm 3000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 13W 1600lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 14W 1800lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 15W 1900lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 18W 2300lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 20W 2600lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 27W 3400lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 31W 3800lm 4000K CRI90 G8
30.940K.100×1405.5S Stratos-K 100 37W 4400lm 4000K CRI90 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 11W 1500lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 12W 1700lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 13W 1900lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 16W 2300lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 20W 2900lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 24W 3400lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 29W 4000lm 3000K CRI80 G8
30.830K.ML.100×1405.5S Stratos-K100 Melanopic 33W 4500lm 3000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 15W 2100lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 18W 2500lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 20W 2700lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 23W 3100lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 25W 3400lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 30W 4000lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 36W 4700lm 4000K CRI80 G8
30.840K.ML.100×1405.5S Stratos-K100 Melanopic 47W 5900lm 4000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 18W 2500lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 19W 2600lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 20W 2800lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 23W 3200lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 26W 3500lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 27W 3700lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 31W 4200lm 3000K CRI80 G8
30.830K.100×1700.6S Stratos-K 100 36W 4800lm 3000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 18W 2700lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 19W 2800lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 20W 3000lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 23W 3400lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 26W 3800lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 27W 3900lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 31W 4500lm 4000K CRI80 G8
30.840K.100×1700.6S Stratos-K 100 36W 5200lm 4000K CRI80 G8
30.930K.100×1685.6S Stratos-K 100 15W 1700lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 17W 1900lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 18W 2000lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 21W 2400lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 24W 2700lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 27W 3000lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 31W 3400lm 3000K CRI90 G8
30.930K.100×1685.6S Stratos-K 100 36W 3900lm 3000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 15W 2000lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 17W 2100lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 18W 2300lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 21W 2700lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 24W 3000lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 27W 3400lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 31W 3800lm 4000K CRI90 G8
30.940K.100×1685.6S Stratos-K 100 36W 4400lm 4000K CRI90 G8
30.830K.100×1965.7S Stratos-K 100 16 W 2 200 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 18 W 2 500 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 20 W 2 800 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 22 W 3 100 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 23 W 3 200 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 24 W 3 400 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 27 W 3 700 lm 3 000 K CRI80 G8
30.830K.100×1965.7S Stratos-K 100 31 W 4 300 lm 3 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 16 W 2 400 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 18 W 2 700 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 20 W 3 000 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 22 W 3 300 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 23 W 3 500 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 25 W 4 600 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 27 W 5 200 lm 4 000 K CRI80 G8
30.840K.100×1965.7S Stratos-K 100 32 W 6 100 lm 4 000 K CRI80 G8
30.930K.100×1965.7S Stratos-K 100 16 W 1 800 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 18 W 2 000 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 20 W 2 300 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 22 W 2 500 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 23 W 2 600 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 24 W 2 800 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 27 W 3 000 lm 3 000 K CRI90 G8
30.930K.100×1965.7S Stratos-K 100 31 W 3 500 lm 3 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 18 W 2 300 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 18 W 2 700 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 19 W 2 500 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 21 W 3 100 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 27 W 3 500 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 28 W 3 900 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 36 W 4 500 lm 4 000 K CRI90 G8
30.940K.100×1965.7S Stratos-K 100 42 W 5 200 lm 4 000 K CRI90 G8
30.830K.100×2245.8S Stratos-K 100 18 W 2 600 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 20 W 2 800 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 23 W 3 200 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 25 W 3 500 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 26 W 3 700 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 28 W 3 900 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 30 W 4 200 lm 3 000 K CRI80 G8
30.830K.100×2245.8S Stratos-K 100 36 W 4 900 lm 3 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 18 W 2 800 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 20 W 3 100 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 23 W 3 400 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 25 W 3 800 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 26 W 4 000 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 28 W 5 300 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 31 W 6 000 lm 4 000 K CRI80 G8
30.840K.100×2245.8S Stratos-K 100 36 W 6 900 lm 4 000 K CRI80 G8
30.930K.100×2245.8S Stratos-K 100 18 W 2 100 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 20 W 2 300 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 23 W 2 600 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 25 W 2 900 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 26 W 3 000 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 28 W 3 200 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 30 W 3 400 lm 3 000 K CRI90 G8
30.930K.100×2245.8S Stratos-K 100 36 W 4 000 lm 3 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 20 W 2 600 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 22 W 2 900 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 24 W 3 000 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 28 W 3 500 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 32 W 4 000 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 36 W 4 500 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 41 W 5 100 lm 4 000 K CRI90 G8
30.940K.100×2245.8S Stratos-K 100 48 W 5 900 lm 4 000 K CRI90 G8

Téléchargements LDT / Photométrie

Téléchargements / Photométrie LDT

Vous pouvez trouver tous les téléchargements centralisés par famille sur
https://atomis.nl/ldt-photometrics/

Produits similaires

Partager
