Myos‑MOS Multioptic® Suspension System

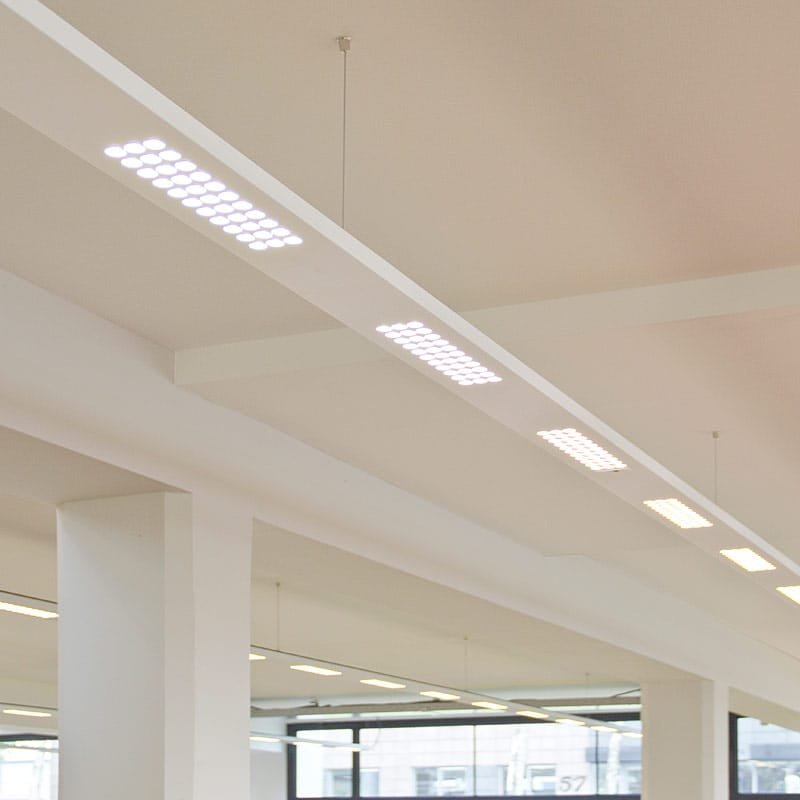

Myos-MOS Multioptic® Suspension System is an innovative pendant luminaire with mid-power LED modules using Multioptic® lens technology. It contains LED modules of 33 power LEDs each, behind a decorative aperture mask. All modules can be configured as desired—up-light, downlight, or both in a single luminaire module. Thanks to the luminaire's linkable design, it is ideally suited to spaces where no suspended ceiling is available.
- Excellent low-glare UGR <19 task lighting per EN 12464-1 for office use
- Finish in a decorative matte white or matte black textured coating
- Multioptic® lens system for excellent low-glare light distribution
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Myos‑MOS Multioptic® Suspension System
With the Myos‑MOS Multioptic® Suspension System you choose architectural lighting that unites design and light quality within the Myos family. Engineered for hospitality, offices, education, public spaces, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Myos-MOS Multioptic® Suspension System is an innovative pendant luminaire with mid-power LED modules using Multioptic® lens technology. It contains LED modules of 33 power LEDs each, behind a decorative aperture mask. All modules can be configured as desired—up-light, downlight, or both in a single luminaire module. Thanks to the luminaire's linkable design, it is ideally suited to spaces where no suspended ceiling is available. - Excellent low-glare UGR < 19 task lighting in line with EN 12464-1 for use in offices - Finish in a decorative matt white or matt black textured coating
Specifications
- Category
- Pendant luminaires
- Brand
- Atomis
- Mounting type
- Pendant
- Application type
- Hospitality, Office, Education, Public spaces
- Material
- Acrylic, Steel
- Optics
- Multioptic® lens technology
- UGR
- <19
- IP class
- IP20 (naar boven)/IP40 (naar beneden)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 3000K, 4000K
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- >140lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class I, Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- Integrated, Optional, Cable, On request, On the driver
