Atomis product variant
Sirio SAPP 600

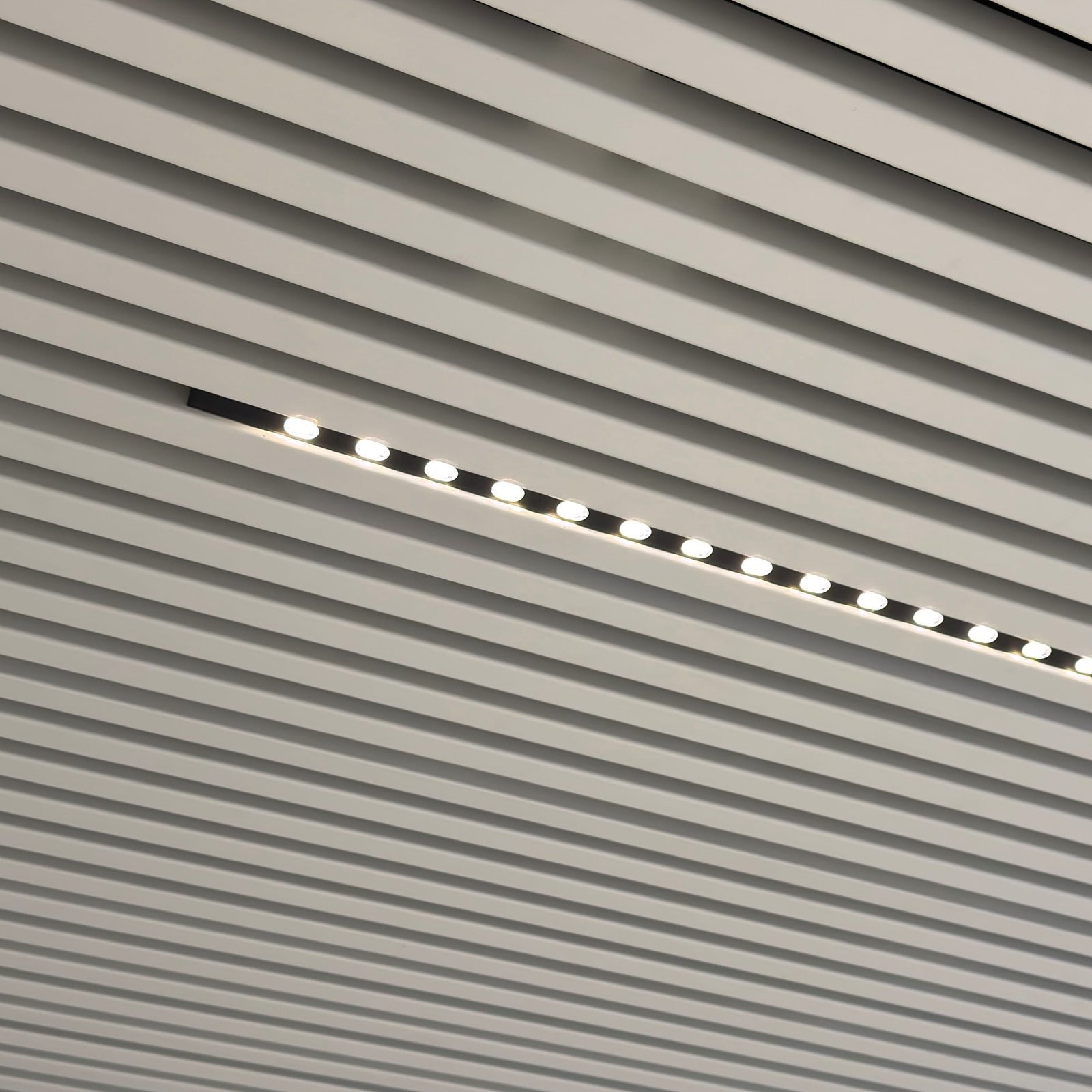

A linear luminaire with lenses for use in Interalu SAPP® ceilings. Sirio SAPP 600 can be placed between the structures, creating an integrated system with the ceiling without interrupting its architectural appearance.
- Can be placed anywhere in the ceiling between the SAPP® ceiling structures without interrupting the climate circuit
- Provides highly controlled light distribution, good uniformity and UGR <19
- The luminaire complies with EN 12464-1
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Sirio SAPP 600
With the Sirio SAPP 600 you choose architectural lighting that unites design and light quality within the Sirio family. Engineered for hospitality, offices, education, public spaces, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
Additional information
- Ambient temperature
- -20°C / +40°C
- Power factor
- >9
LDT / Photometrics downloads
Photometrics
LDT / Photometrics downloads - Sirio
zipLDT- en photometrics-bestanden voor de Sirio productfamilie.
Sirio LDT / Photometrics ZIPzip
Specification text
A linear luminaire with lenses for use in Interalu SAPP® ceilings. Sirio SAPP 600 can be placed between the structures, creating an integrated system with the ceiling without interrupting its architectural appearance. - Can be placed anywhere in the ceiling between the SAPP® ceiling structures without interrupting the climate circuit - Provides a highly controlled light distribution, good uniformity and low UGR - The luminaire complies with EN 12464-1
Specifications
- Category
- Klimaatplafond armaturen, Lamel armaturen
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Hospitality, Office, Education, Public spaces
- Material
- Acrylic, Steel
- Optics
- Lens and louvre
- UGR
- <19
- IP class
- IP20 (naar boven)/IP40 (naar beneden)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 3500K, 4000K, Tunable White
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- >125lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, BST 14i2, Europlug, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), Remote driver, N/A, Downward, On request, On the driver, Rectangular, SDCM=3
