Sirio SAPP 1200

A linear lighting fixture with lenses for use in Interalu SAPP® ceilings. Sirio SAPP 1200 can be placed between structures, creating an integrated system with the ceiling without disrupting the architectural appearance.

  • Sirio SAPP 1200 can be placed between structures, creating an integrated system with the ceiling without disrupting the architectural appearance.
  • Provides highly controlled light distribution, excellent uniformity and UGR< 19
  • The fixture complies with NEN-EN 12464-1
Downloads

Description

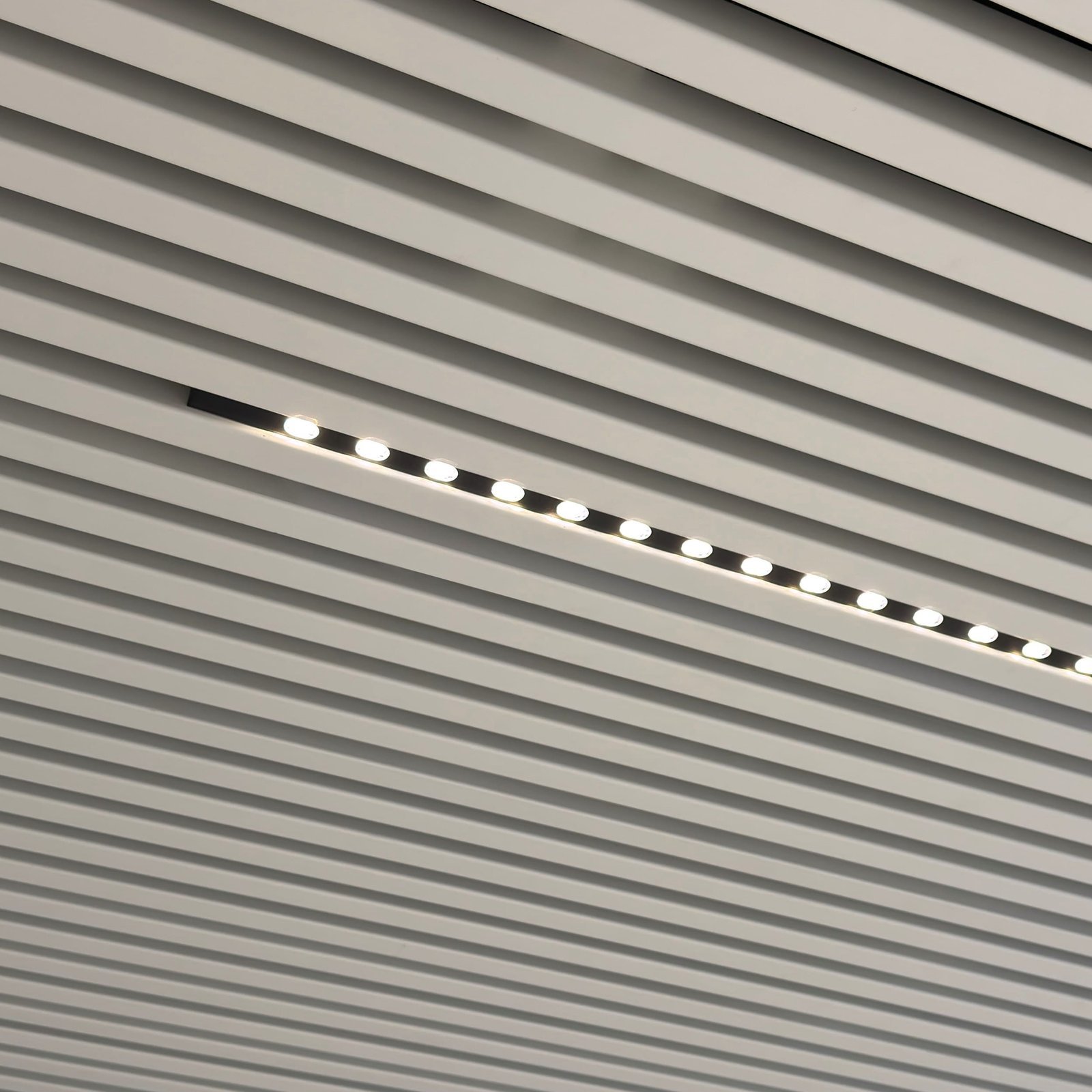

Sirio SAPP 1200 is a linear lighting fixture with lenses, designed for use in Interalu SAPP® ceilings. Thanks to its ultra-narrow width of just 21.5 mm, the fixture can be placed between ceiling structures, creating a fully integrated system without disrupting the architectural appearance of the ceiling.

This smart integration means the active climate system doesn’t need to be interrupted and the position of the fixtures can be freely chosen in a ready-finished ceiling. This provides maximum flexibility in lighting design, both for renovation and new construction projects.

The fixture features a row of optics consisting of 28 lenses, each equipped with 4 LEDs. This configuration provides highly controlled light distribution, excellent uniformity and low glare with UGR less than 19.

Sirio SAPP 1200 complies with the NEN-EN 12464-1 standard for workplace lighting and is therefore extremely suitable for applications where visual comfort and functional lighting are central.

Key features

  • Linear fixture for Interalu SAPP ceilings
  • Ultra-narrow width of 21.5 mm
  • Fully integrated into the ceiling design
  • No interruption of the active climate system
  • Free positioning in finished ceiling
  • Row of 28 lenses with 4 LEDs each
  • Controlled light distribution and excellent uniformity
  • Low glare with UGR less than 19
  • Complies with NEN-EN 12464-1

Thanks to these features, Sirio SAPP 1200 is particularly suitable for use in offices, schools, government buildings and other professional work environments where comfort, standards and architecture come together.

Additional information

Air extraction

Armatuurefficiëntie

Bevestiging

CIE Flux code

Driver positie

Energielabel

Family

Photobiological safety

Glare (UGR)

IP-class

Isolatieklasse

Kleurconsistentie (SDCM)

Kleurtemperatuur

, , , ,

Color Rendering Index (CRI)

,

Light control

, , ,

Luchtafzuiging

n.v.t.

Material

,

Emergency lighting

, ,

Ambient temperature

Optics

Oriëntatie

Packaging dimensions

Powerfactor

Primaire aansluitingen

, , , , ,

Productkleur

Producttoepassing

, , ,

Self-adhesive dust cover

Specificaties

Verpakkingsafmetingen

Bulkverpakking

Verwachte levensduur

Voltage / frequentie

Shape

Zelfklevende stofkap

Optioneel

Photometric data

17.830 Sirio 1200 SAPP 12W 1400lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 14W 1700lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 17W 2000lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 19W 2300lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 21W 2500lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 25W 3000lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 29W 3400lm 3000K CRI80 G7d
17.830 Sirio 1200 SAPP 32W 3600lm 3000K CRI80 G7d
17.840 Sirio 1200 SAPP 12W 1500lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 14W 1800lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 17W 2100lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 19W 2400lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 21W 2700lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 25W 3100lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 29W 3500lm 4000K CRI80 G7d
17.840 Sirio 1200 SAPP 32W 3800lm 4000K CRI80 G7d
