Atomis product variant
Ultralight-SAPP

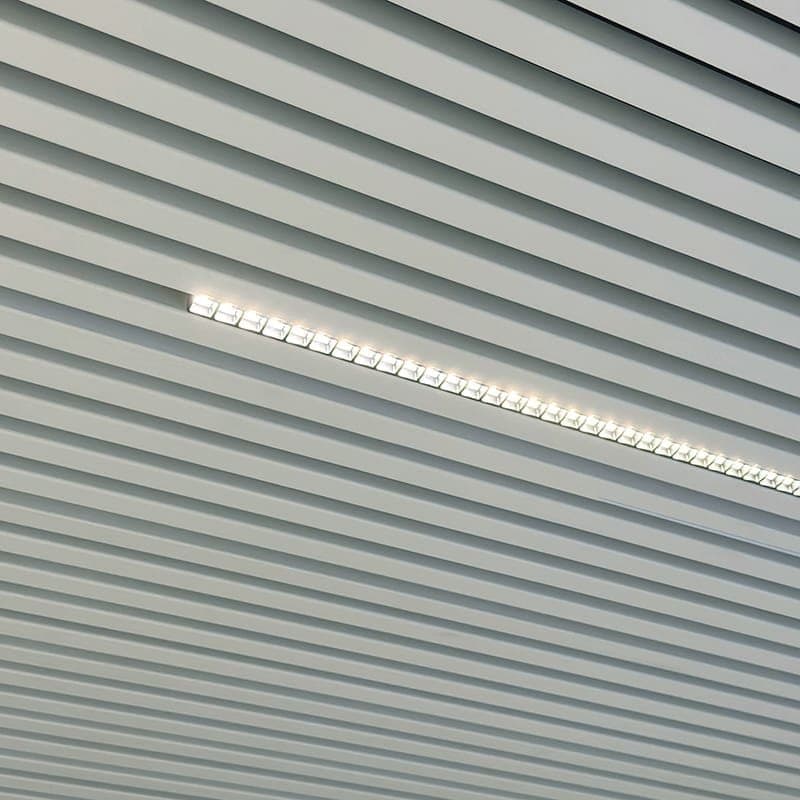

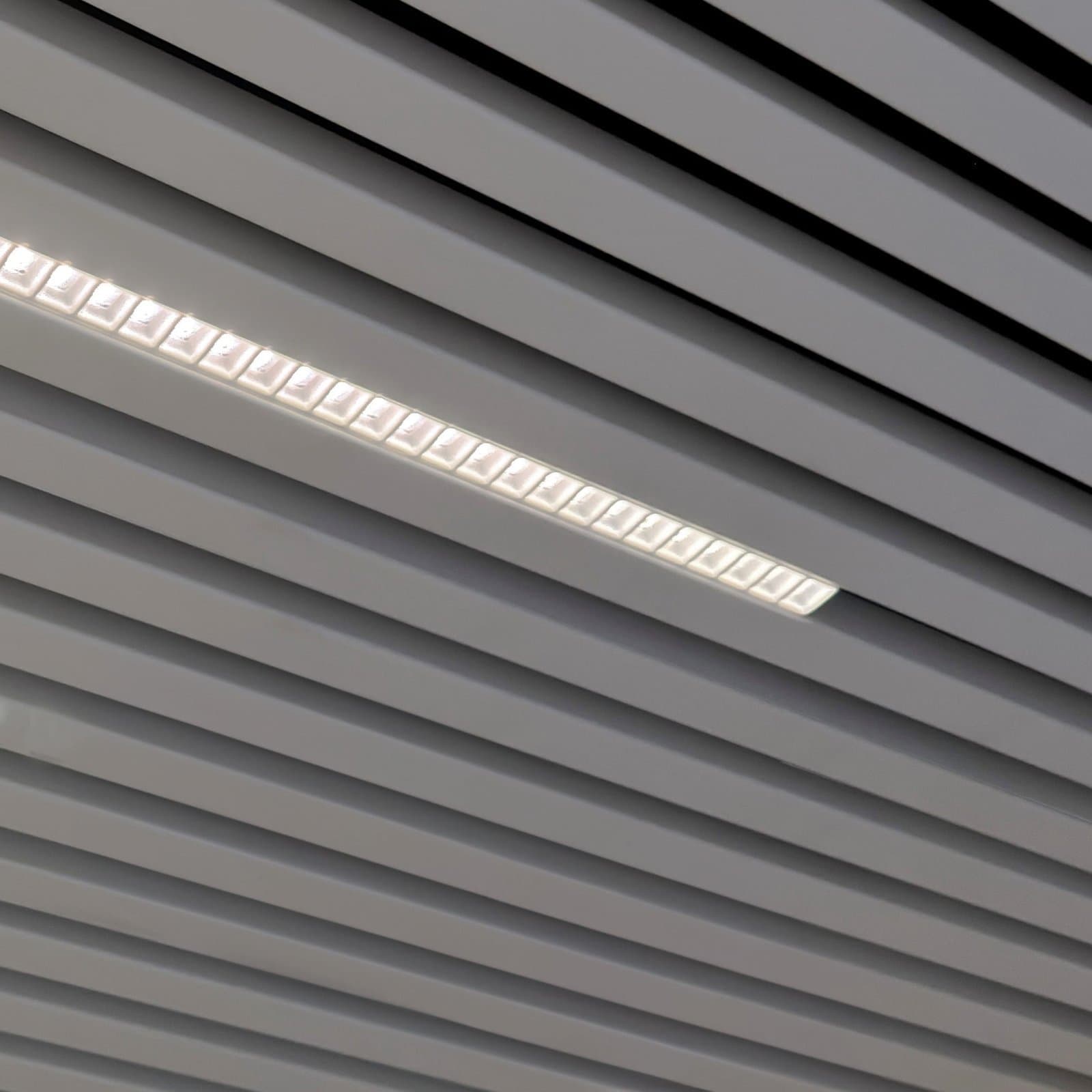

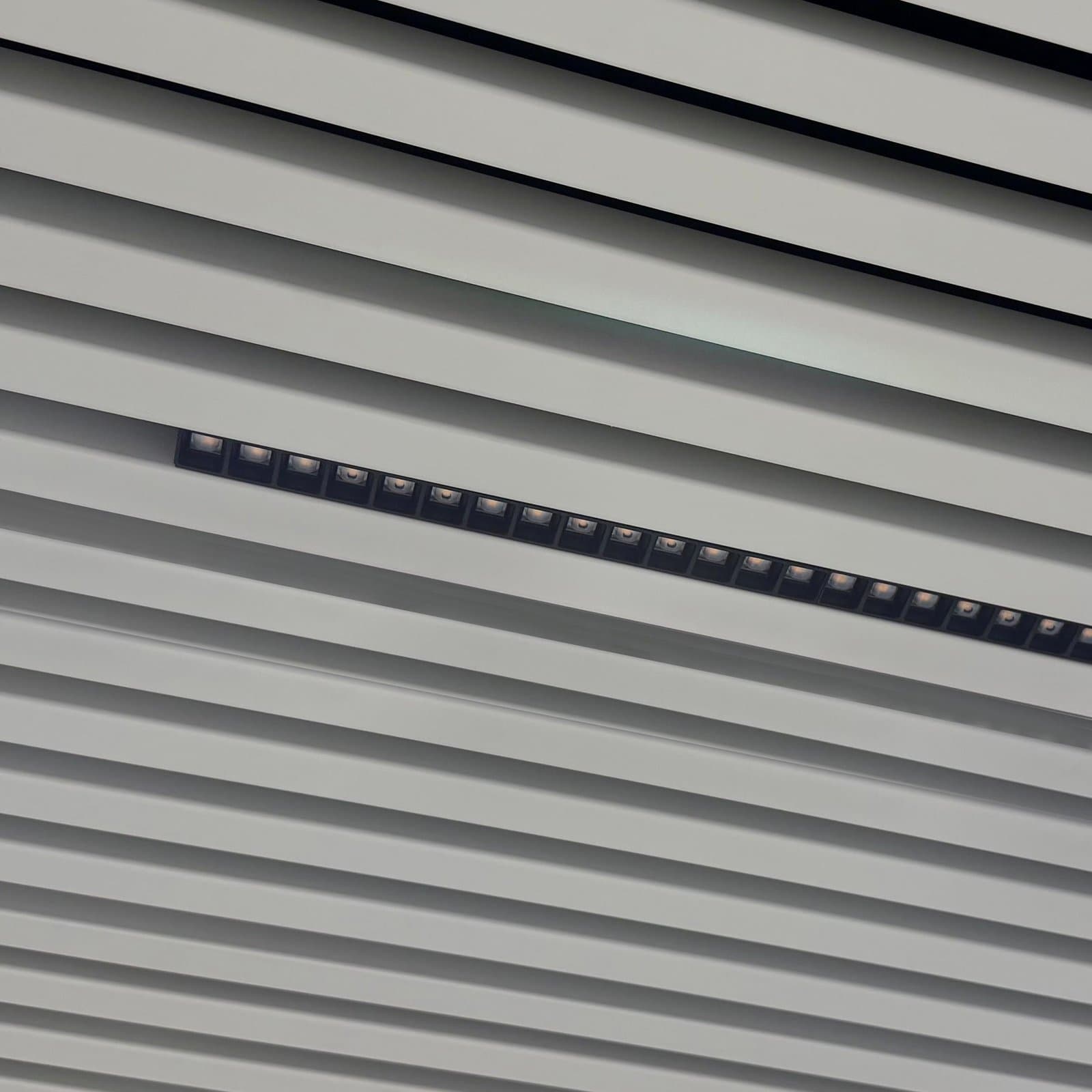

Ultralight-SAPP is an elegant, slim LED luminaire fitted with a row of mid-power LEDs, each with its own lens and louvre. This luminaire is specially designed for use in linear baffle ceilings.
- Elegant slim design for use in linear baffle ceilings
- Excellent low-glare task lighting per EN 12464-1 for office use
- Available in matte white or matte black textured coating
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Ultralight-SAPP
With the Ultralight-SAPP you choose architectural lighting that unites design and light quality within the Ultralight family. Engineered for hospitality, offices, education, public spaces, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
Additional information
- Ambient temperature
- -20°C / +40°C
- Power factor
- >9
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Ultralight-SAPP is an elegant, slim LED luminaire fitted with a row of mid-power LEDs, each with its own lens and louvre. This luminaire is specially designed for use in linear baffle ceilings. - Elegant, slim design for use in linear baffle ceilings - Excellent low-glare task lighting in line with EN 12464-1 for use in offices - Available in a matt white or matt black textured coating
Specifications
- Category
- Klimaatplafond armaturen, Lamel armaturen
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Hospitality, Office, Education, Public spaces
- Material
- Acrylic, Steel
- Optics
- Lens and louvre
- UGR
- <19
- IP class
- IP20 (naar boven)/IP40 (naar beneden)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 3500K, 4000K, Tunable White
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- >140lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, BST 14i2, Europlug, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), Remote driver, N/A, Downward, On request, On the driver, Rectangular, SDCM=3
