Evolo-L

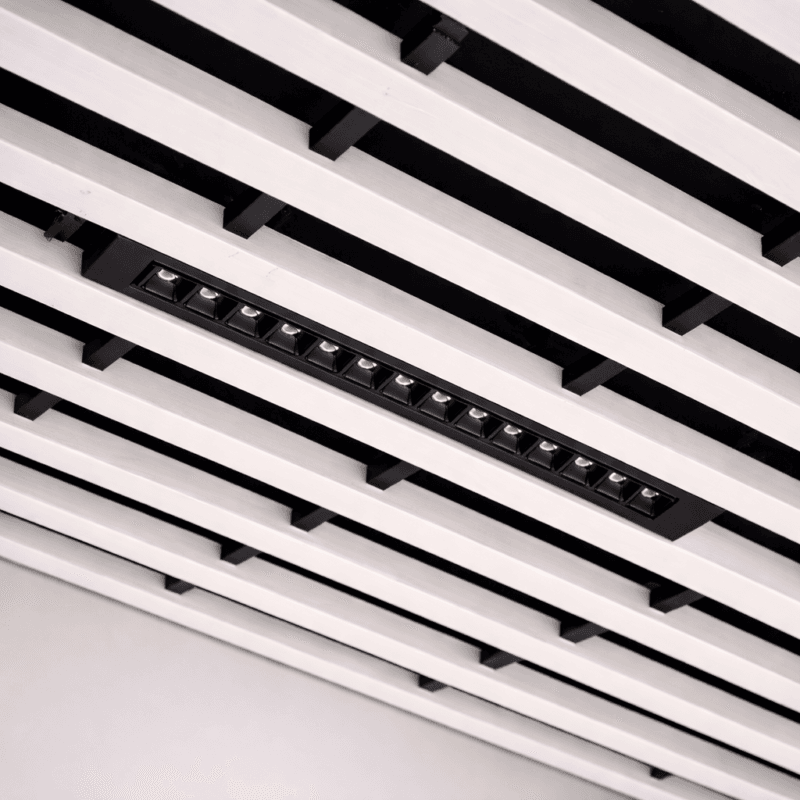

Evolo-L is an elegant, slim LED luminaire fitted with a row of mid-power LEDs, each with its own lens and louvre.
- Elegant slim linear luminaire for use in linear panel ceilings
- Excellent low-glare task lighting per EN 12464-1 for office use
- Available in matte white or matte black textured coating
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Evolo-L
With the Evolo-L you choose architectural lighting that unites design and light quality within the Evolo family. Engineered for kantoren, museums, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Evolo-L is an LED luminaire from the Evolo range by Atomis. The luminaire is suitable for use in offices, museums, healthcare, education, public spaces and the leisure sector. Its shape is rectangular. The luminaire is recessed-mounted and fitted with a lens met louver optic with low glare (UGR <19). The housing is made of steel, colour RAL9016, RAL9005, On request.
The light source is LED, available in 2700K, 3000K, 4000K, Tunable white, op aanvraag, with a colour rendering of CRI80, CRI90 and a colour consistency of SDCM=3. Dimensions: Op aanvraag. Cut-out: Op aanvraag. Mounting depth: Op aanvraag. Orientation: downward. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: losliggend met plug & play aansluiting. Emergency lighting: 1-hour emergency power, 1 uur autonomie autotest. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar. This product is manufactured in the Netherlands.
Features: Elegant slim linear luminaire for use in linear panel ceilings; Excellent low-glare task lighting per EN 12464-1 for office use; Available in matte white or matte black textured coating.
Specifications
- Category
- Baffle luminaires
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Kantoren, Musea, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- Steel (housing)
- Optics
- Lens met Louver
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1-hour emergency power, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Cut-out / recess size
- On request
- Mounting depth
- On request
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker (in standard configuration)
- 50
- Max. units per C16 breaker (in standard configuration)
- 80
