Atomis product variant

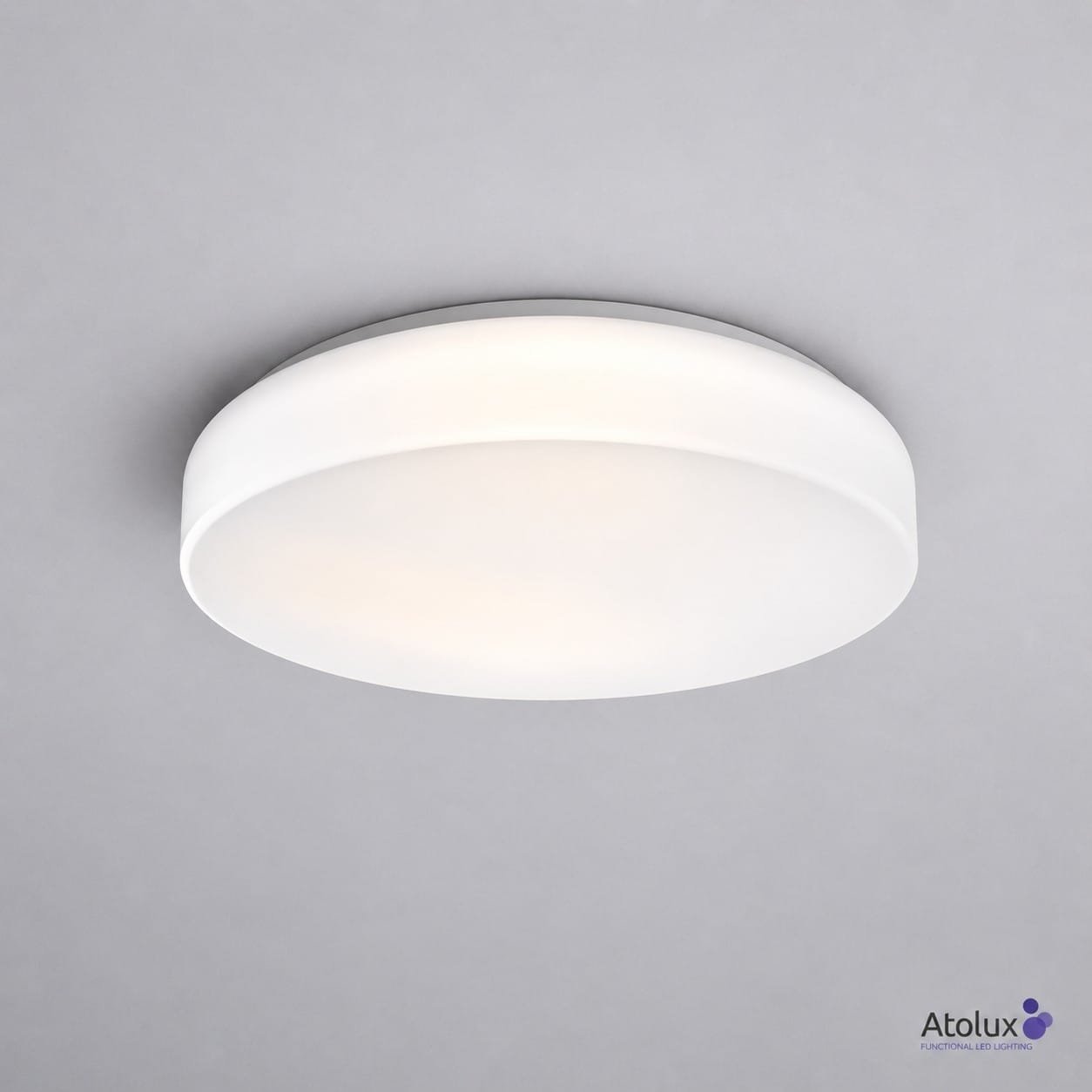

Ferro Round 360
The Ferro Round 360 is a modern, premium surface-mounted LED luminaire designed for projects where functionality, reliability and a clean, minimalist design come together. Thanks to its round shape and high-quality PMMA optics, this luminaire blends seamlessly into modern interiors in offices, commercial spaces, public buildings and utility projects.
- DALI dimmable
- Motion sensors
- Wireless control options for energy-efficient, smart-building solutions
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Ferro Round 360
With the Ferro Round 360 you choose architectural lighting that unites design and light quality within the Ferro family. Engineered for hospitality, offices, education, public spaces, retail, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
Additional information
- Ambient temperature
- -20°C / +40°C
- Power factor
- >9
- Emergency lighting
- 1-hour emergency power
- Lighting control
- 1-10V dimmable
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Lighting control
- Casambi dimmable
- Colour rendering index / CRI
- CRI80
- Colour rendering index / CRI
- CRI90
- Lighting control
- DALI dimmable
- Driver position
- Integrated
- Product colour
- Grey
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Primary connections
- Cable
- Insulation class
- Class I
- Insulation class
- Class II
- Expected service life
- L90B50@60, 000h (Tq 25°C)
- Orientation
- Downward
- Primary connections
- On request
- Primary connections
- On the driver
- Optics
- Opal diffuser
- Lighting control
- Optional
- Emergency lighting
- Optional
- Emergency lighting
- Optional 1-hour autonomy self-test
- Optics
- Reflector
- Shape
- Round
- Colour consistency / SDCM
- SDCM=3
- Product colour
- White
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
The Ferro Round 360 is a modern, premium surface-mounted LED luminaire designed for projects where functionality, reliability and a clean, minimalist design come together. Thanks to its round shape and high-quality PMMA optics, this luminaire blends seamlessly into modern interiors in offices, commercial spaces, public buildings and utility projects. - DALI dimming - Motion sensors - Wireless control options This makes the Ferro Round 360 suitable for energy-efficient and smart-building solutions - IP40 (for dry indoor spaces) - Diffuser impact resistance: IK05 for PMMA - Dimensions: Ø 360 mm, height 70 mm
Specifications
- Category
- Opbouwarmaturen, Waterdichte / hoge beschermingsklasse armaturen
- Brand
- Atomis
- Mounting type
- Surface-mounted
- Application type
- Hospitality, Office, Education, Public spaces, Retail
- Material
- Acrylic, Aluminium
- Optics
- Opal diffuser, Reflector
- UGR
- n-v-t-
- IP class
- IP66
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 3500K, 4000K, Tunable White
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- 135lm-w
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class I, Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, Integrated, Grey, Cable, L90B50@60, 000h (Tq 25°C), N/A, Downward, On request, On the driver, Round, SDCM=3, White
