Fusion-BM

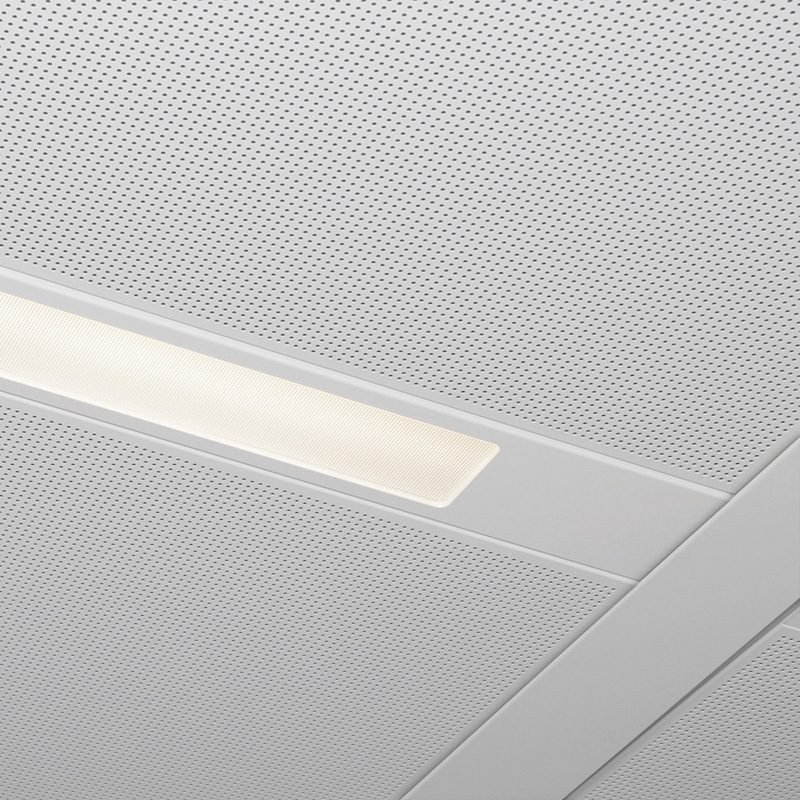

Fusion-BM is a modular LED luminaire made of steel, specifically for use in grid (bandraster) ceilings. The drop-in modules were developed as an alternative to T8 and T5 fluorescent luminaires for renovation and new-build projects. Fusion-BM is fitted with microprismatic lens optics with low surface luminance (UGR < 19).
- Suitable for use with all common bandraster ceilings
- Architectural look
- Equipped with a prismatic lens (UGR <19) or an opal diffuser
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Fusion-BM
With the Fusion-BM you choose architectural lighting that unites design and light quality within the Fusion family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Fusion-BM is a modular LED luminaire made of steel, specifically for use in grid (bandraster) ceilings. The drop-in modules were developed as an alternative to T8 and T5 fluorescent luminaires for renovation and new-build projects. Fusion-BM is fitted with microprismatic lens optics with low surface luminance (UGR < 19). - Suitable for use with all common grid ceilings - Architectural appearance - Fitted with a prismatic lens (UGR < 19) or an opal diffuser
Specifications
- Category
- Recessed & lay-in luminaires
- Brand
- Atomis
- Mounting type
- Lay-in
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- Steel (housing)
- Optics
- Microprisma
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Cut-out / recess size
- On request
- Mounting depth
- 50mm
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker
- 50
