Atomis product variant
Interline-SAPP

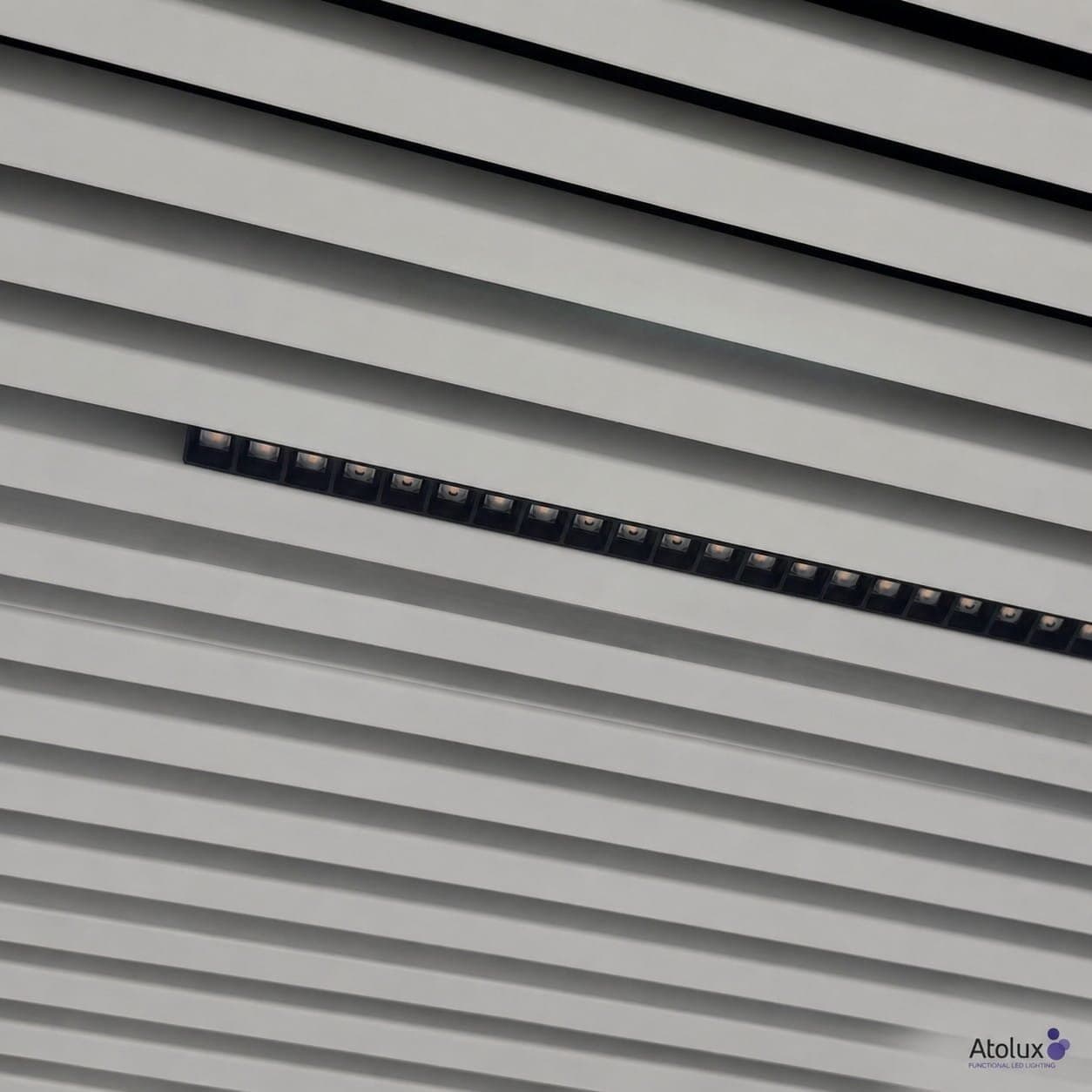

Seamless line lighting for Interalu SAPP — sleek, flexible and comfortable (low UGR). Atolux Interline SAPP is a minimalist, elegant linear luminaire that blends seamlessly into the Interalu SAPP baffle ceiling. Thanks to its smart spring-clip mechanism, you simply click the luminaire into the joint—quick to install and effortless to reposition later when the layout of the space changes. The combination of clean design and high-quality optics delivers a pleasant, calm light effect. The matt black optics provide pleasant visual comfort with a low UGR, ideal for screen-based workstations and modern office environments. With an efficiency of >130 lm/W and a high CRI of 90, Interline SAPP combines maximum light output with natural colour rendering—perfect for high-quality task lighting compliant with EN 12464-1 for office applications. It is practical too: the luminaire comes standard with a DALI-2 driver, including a 5-metre link cable between driver and luminaire and a GST18i5 male/female compatible connection on the driver for fast, error-free installation and through-wiring. Available in a white or black coating, so the luminaire always matches the ceiling and interior concept. Dimensions: W21×L850, W21×L1130, W21×L1410
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Interline-SAPP
With the Interline-SAPP you choose architectural lighting that unites design and light quality within the Interline family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Seamless line lighting for Interalu SAPP — sleek, flexible and comfortable (low UGR). Atolux Interline SAPP is a minimalist, elegant linear luminaire that blends seamlessly into the Interalu SAPP baffle ceiling. Thanks to its smart spring-clip mechanism, you simply click the luminaire into the joint—quick to install and effortless to reposition later when the layout of the space changes. The combination of clean design and high-quality optics delivers a pleasant, calm light effect. The matt black optics provide pleasant visual comfort with a low UGR, ideal for screen-based workstations and modern office environments. With an efficiency of >130 lm/W and a high CRI of 90, Interline SAPP combines maximum light output with natural colour rendering—perfect for high-quality task lighting compliant with EN 12464-1 for office applications. It is practical too: the luminaire comes standard with a DALI-2 driver, including a 5-metre link cable between driver and luminaire and a GST18i5 male/female compatible connection on the driver for fast, error-free installation and through-wiring. Available in a white or black coating, so the luminaire always matches the ceiling and interior concept. Dimensions: W21×L850, W21×L1130, W21×L1410
Specifications
- Category
- Klimaatplafond armaturen, Lamel armaturen
- Brand
- Atomis
- Mounting type
- Lay-in
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- 21x85mm, 21x1130mm, 21x1410mm
- Material
- Aluminium (housing)
- Optics
- Lens met Louver
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 3000K, 4000K
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Mounting depth
- 32mm
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Max. units per B16 breaker
- 50
