Atomis product variant

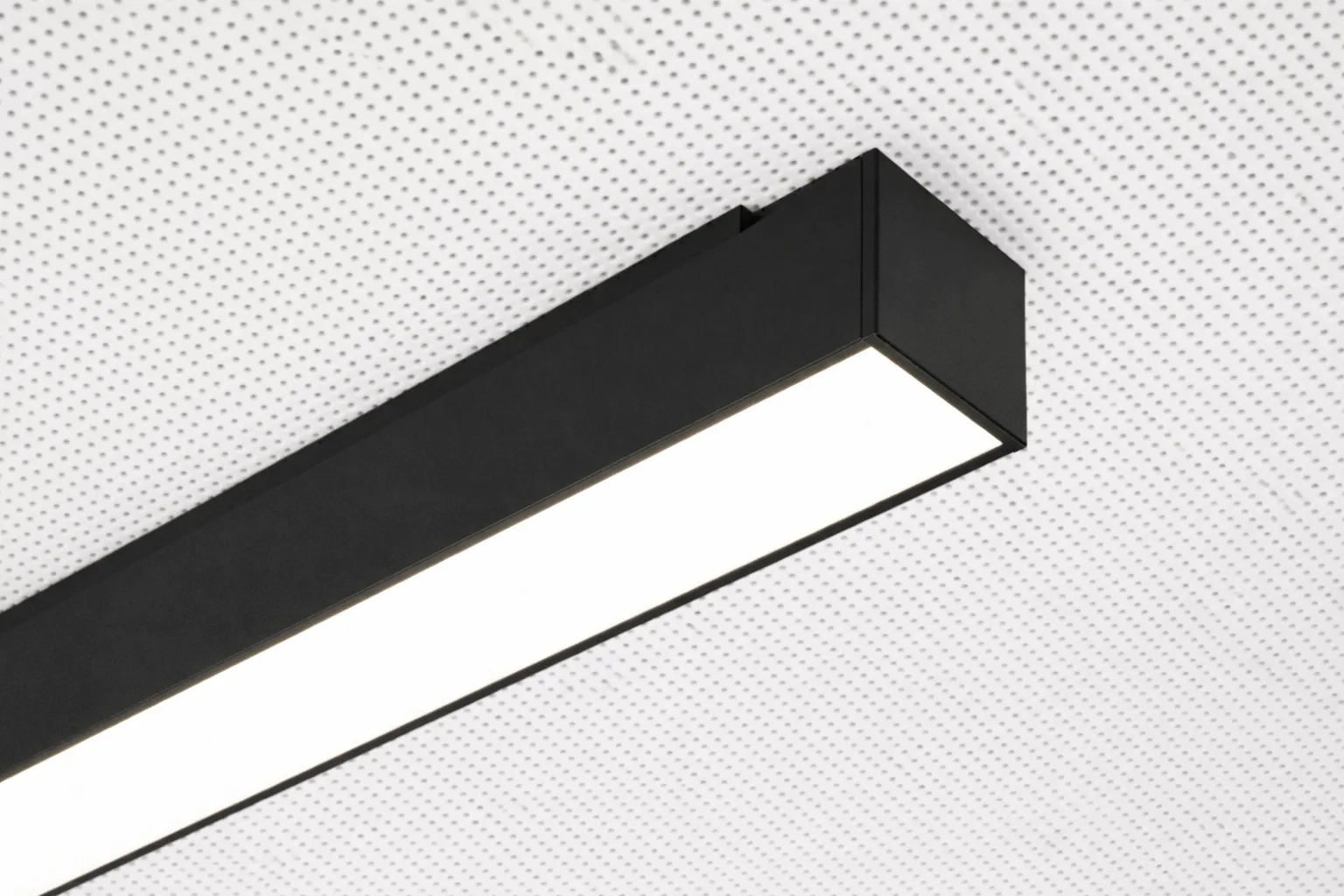

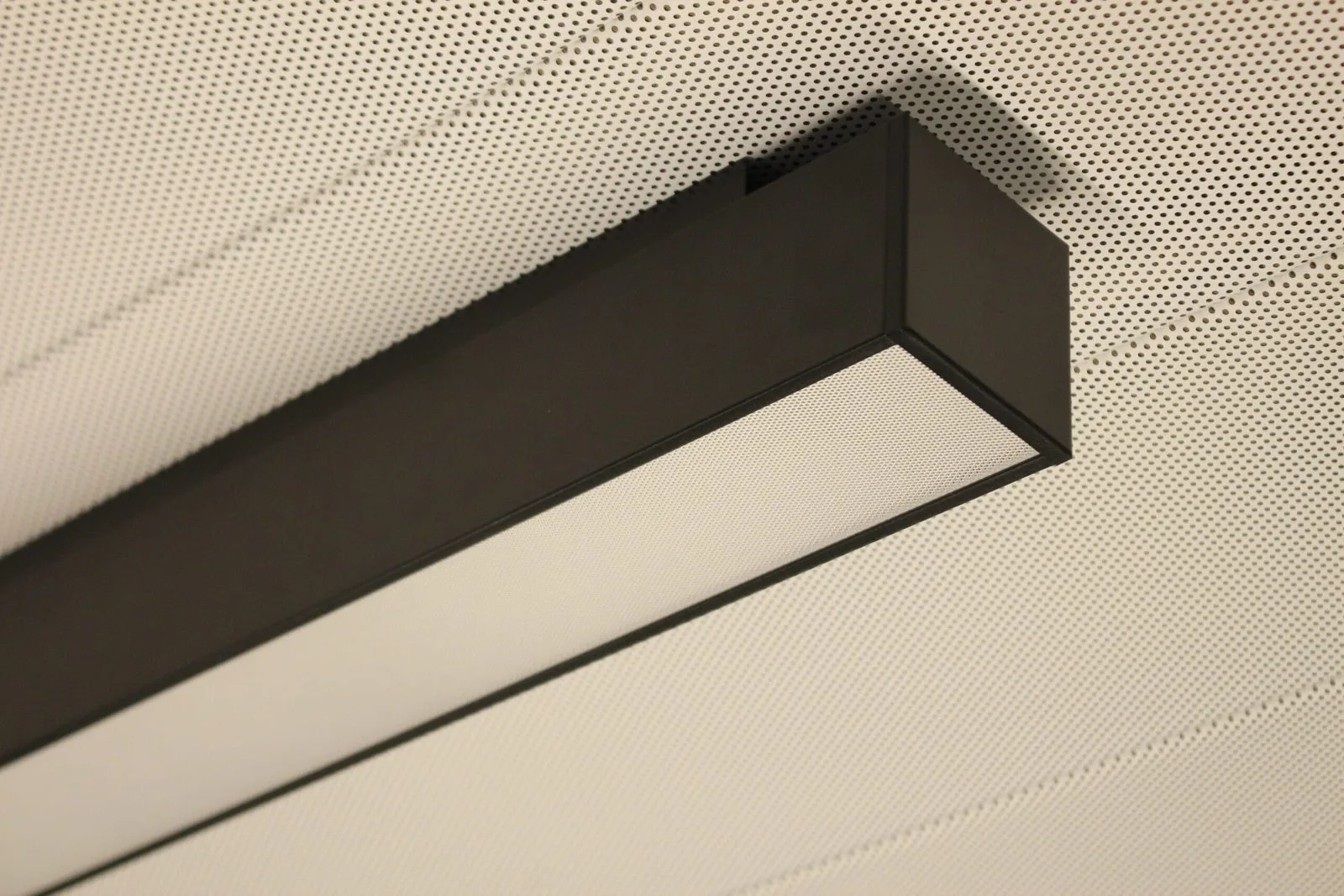

Lightscape 80-C
Lightscape 80-C is a surface-mounted luminaire from the Lightscape range by Atomis. The luminaire is surface-mounted, directed downward and fitted with a microprismatic optic. The range is intended for offices, healthcare, education, public spaces and leisure venues.
- Architectural design delivering uniform lighting across the full length of the luminaire
- Office lighting
- Prismatic lens, UGR <19
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Lightscape 80-C is a surface-mounted luminaire from the Lightscape range by Atomis. The luminaire is surface-mounted, directed downward and fitted with a microprismatic optic. The range is intended for offices, healthcare, education, public spaces and leisure venues.
With the Lightscape 80-C you choose architectural lighting that unites design and light quality within the Lightscape family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Lightscape 80-C is a surface-mounted luminaire from the Lightscape range by Atomis. The luminaire is surface-mounted, directed downward and fitted with a microprismatic optic. The range is intended for offices, healthcare, education, public spaces and leisure venues.
Specifications
- Category
- Surface-mounted luminaires
- Brand
- Atomis
- Mounting type
- Surface-mounted
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- Aluminium (housing)
- Optics
- Microprisma
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Efficiency
- >140lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class I
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- Geintegreerd in het armatuur
- Flicker
- < 3%
- Primary connections
- Aansluitconnector
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker
- 50
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, BST 14i2, Europlug, Integrated, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), N/A, Downward, On request, On the driver, Rectangular, SDCM=3
