Atomis product variant
Linterna-B

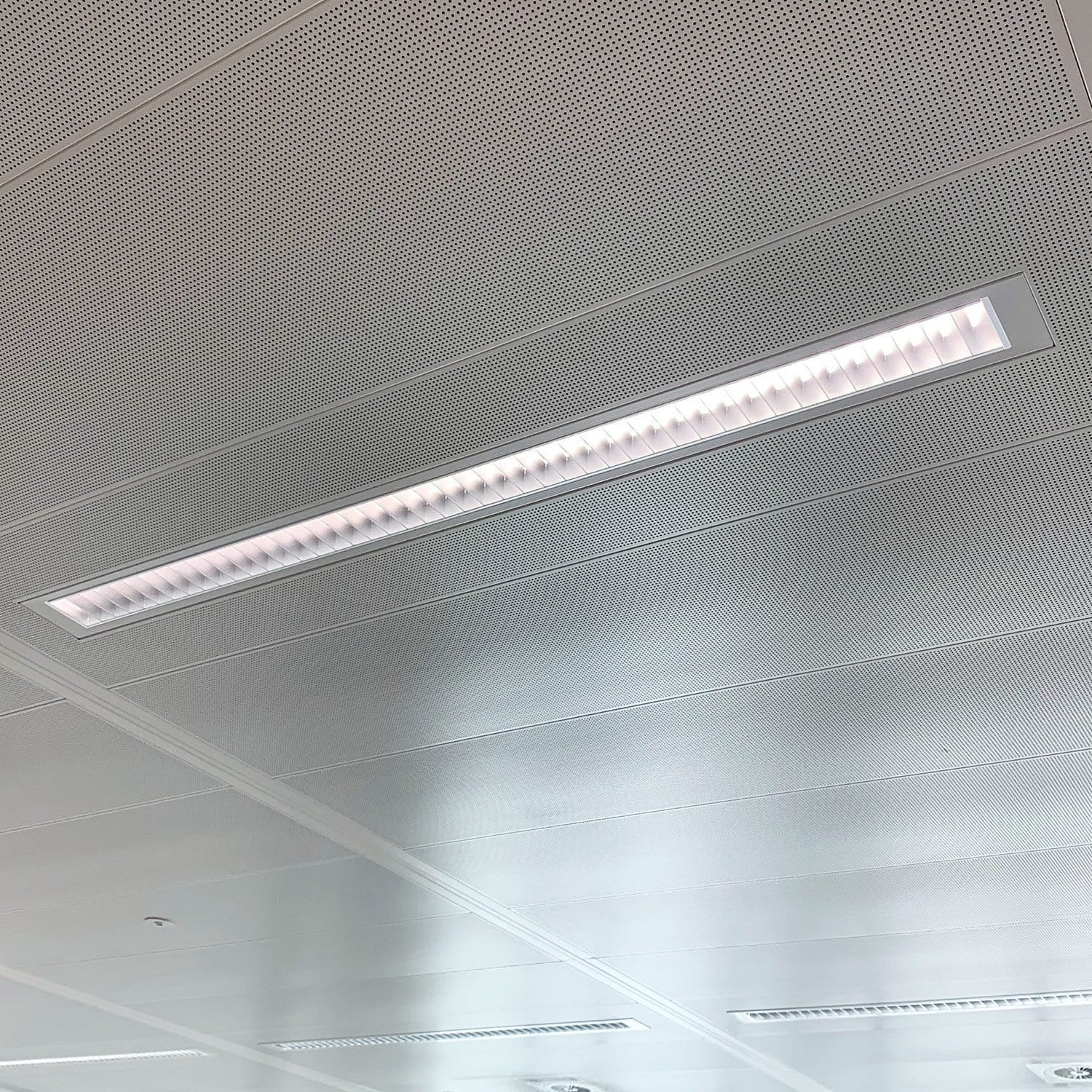

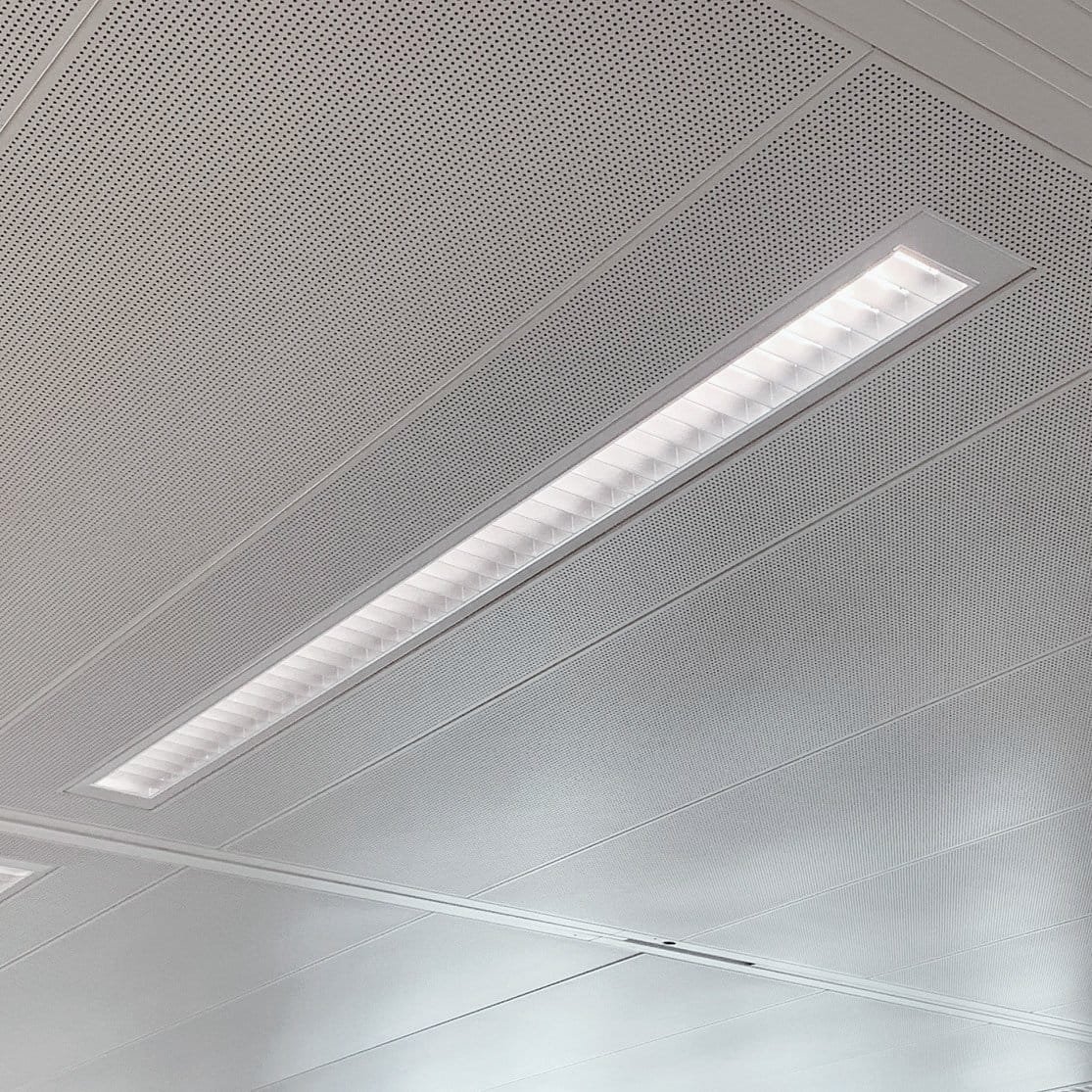

A linear luminaire with a parabolic batwing louvre for use in climate and metal ceilings.
- Batwing louver design allows wide luminaire spacing while maintaining good uniformity
- Baffles in matte or glossy anodised, or UGR <19 for office use
- Bandraster ceiling mounting allows easy installation
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Linterna-B
With the Linterna-B you choose architectural lighting that unites design and light quality within the Linterna family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Linterna-B is an LED luminaire from the Linterna range by Atomis. The luminaire is suitable for use in offices, healthcare, education, public spaces and the leisure sector. Its shape is rectangular. The luminaire is lay-in-mounted and fitted with a parabool reflector optic with low glare (UGR <19). The housing is made of steel, colour RAL9016, RAL9005, On request.
The light source is LED, available in 2700K, 3000K, 4000K, Tunable white, op aanvraag, with a colour rendering of CRI80, CRI90 and a colour consistency of SDCM=3. Dimensions: Op aanvraag. Cut-out: Op aanvraag. Mounting depth: Op aanvraag. Orientation: downward. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: losliggend met plug & play aansluiting. Emergency lighting: 1-hour emergency power, 1 uur autonomie autotest. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar. This product is manufactured in the Netherlands.
Features: Batwing louver design allows wide luminaire spacing while maintaining good uniformity; Baffles in matte or glossy anodised, or UGR <19 for office use; Bandraster ceiling mounting allows easy installation.
Specifications
- Category
- Recessed & lay-in luminaires
- Brand
- Atomis
- Mounting type
- Lay-in
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- Steel (housing)
- Optics
- Parabool reflector
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1-hour emergency power, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Cut-out / recess size
- On request
- Mounting depth
- On request
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- Aluminium
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker (in standard configuration)
- 36
- Max. units per C16 breaker (in standard configuration)
- 80
