Meson Pro Refit

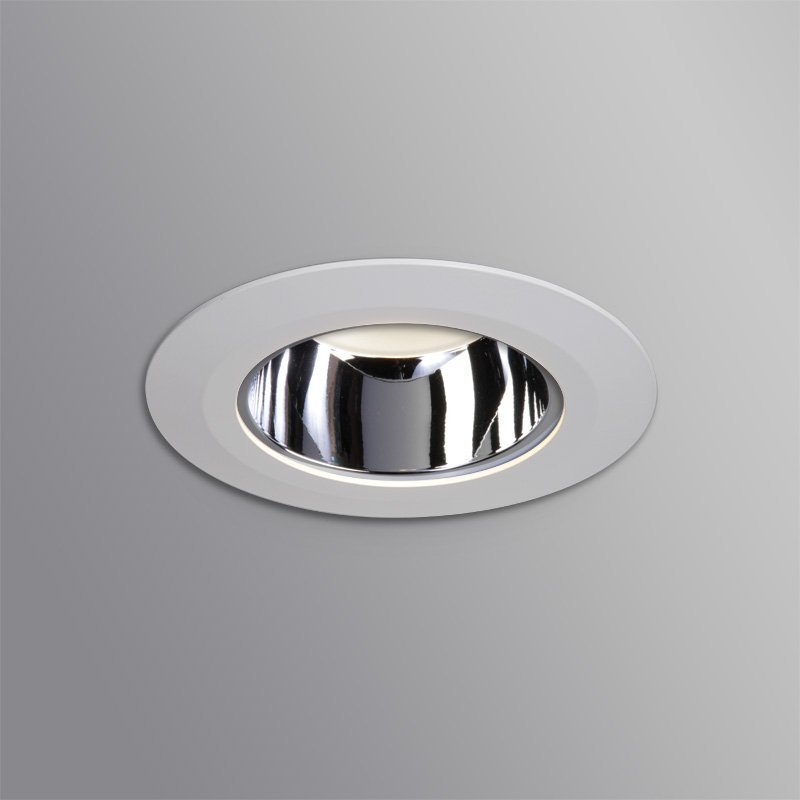

Meson Pro Refit is a Downlights en inbouwspots, Refurbishment en Retrofit armaturen from the Meson range by Atomis. The luminaire is recessed, directed downward and fitted with Reflector met Opaal. The range is intended for offices, healthcare, education, public spaces and leisure venues.
- Decorative trim ring
- Suitable for a wide range of existing ceiling cut-outs (Ø185–230 mm)
- Luminaire efficiency >125 lm/W
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Meson Pro Refit is a Downlights en inbouwspots, Refurbishment en Retrofit armaturen from the Meson range by Atomis. The luminaire is recessed, directed downward and fitted with Reflector met Opaal. The range is intended for offices, healthcare, education, public spaces and leisure venues.
With the Meson Pro Refit you choose architectural lighting that unites design and light quality within the Meson family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Meson Pro Refit is a Downlights en inbouwspots, Refurbishment en Retrofit armaturen from the Meson range by Atomis. The luminaire is recessed, directed downward and fitted with Reflector met Opaal. The range is intended for offices, healthcare, education, public spaces and leisure venues.
Specifications
- Category
- Downlights en inbouwspots, Refurbishment armaturen
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- 245mm
- Material
- Steel (housing)
- Optics
- Reflector met Opaal
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Efficiency
- >125lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Round
- Orientation
- Downward
- Cut-out / recess size
- 185 tot 230mm
- Mounting depth
- 150mm
- Colour consistency (SDCM)
- SDCM=2
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- Acrylic
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geassembleerd in Nederland
- Max. units per B16 breaker
- 50
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, BST 14i2, Europlug, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), Remote driver, N/A, Downward, On request, On the driver, Round, SDCM=2
