Metronome-B
Metronome-B is a linear LED luminaire fitted with 20, 28 or 36 lenses, recessed behind a louvre grille, for use in grid (bandraster) ceilings. This LED luminaire is an entirely new lighting solution for effective lighting with an architectural appearance. A choice can be made between UGR < 19 and UGR < 16 optics.
- Architectural look with 20, 28 or 36 optics
- Choice between UGR <19 and UGR <16 optics
- Louver finish in white or high-gloss aluminium
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Metronome-B
With the Metronome-B you choose architectural lighting that unites design and light quality within the Metronome family. Engineered for hospitality, offices, education, public spaces, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
Additional information
- Ambient temperature
- -20°C / +40°C
- Power factor
- >9
LDT / Photometrics downloads
Photometrics
LDT / Photometrics downloads - Metronome
zipLDT- en photometrics-bestanden voor de Metronome productfamilie.
Metronome LDT / Photometrics ZIPzip
Specification text

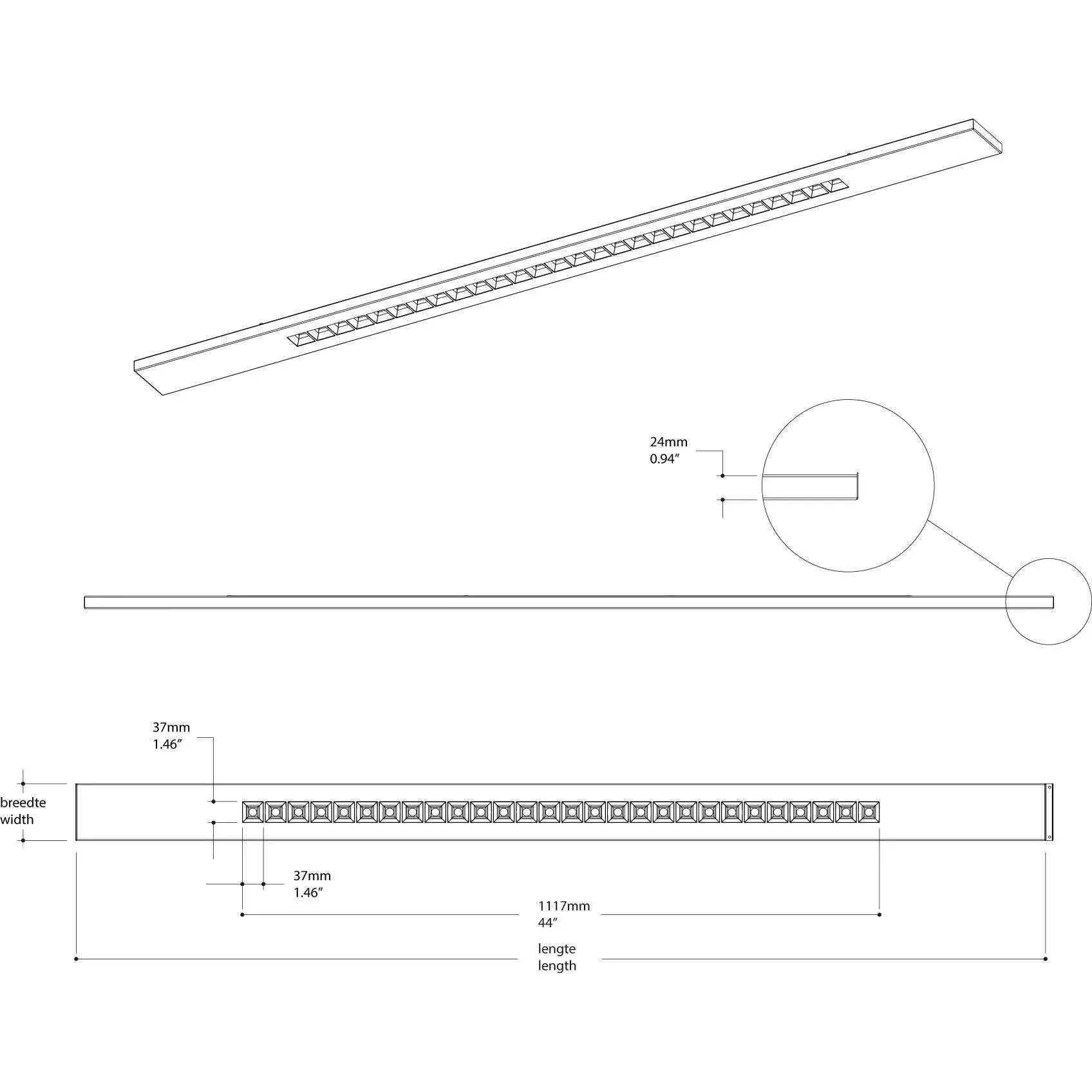

Metronome-B is a linear LED luminaire fitted with 20, 28 or 36 lenses, recessed behind a louvre grille, for use in grid (bandraster) ceilings. This LED luminaire is an entirely new lighting solution for effective lighting with an architectural appearance. A choice can be made between UGR < 19 and UGR < 16 optics. - Architectural appearance with 20, 28 or 36 optics - Choice between UGR < 19 and UGR < 16 optics - Louvre finish in white or high-gloss aluminium - Flat design for low ceiling depths
Specifications
- Category
- Grid ceiling luminaires
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Hospitality, Office, Education, Public spaces
- Material
- Acrylic, Steel
- Optics
- Lens and louvre
- UGR
- <19
- IP class
- IP20 (naar boven)/IP40 (naar beneden)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 3500K, 4000K, Tunable White
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- >140lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, Attached to the luminaire, BST 14i2, Europlug, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), Remote driver, Downward, On request, On the driver, Optional, Rectangular, SDCM=3
