Atomis product variant

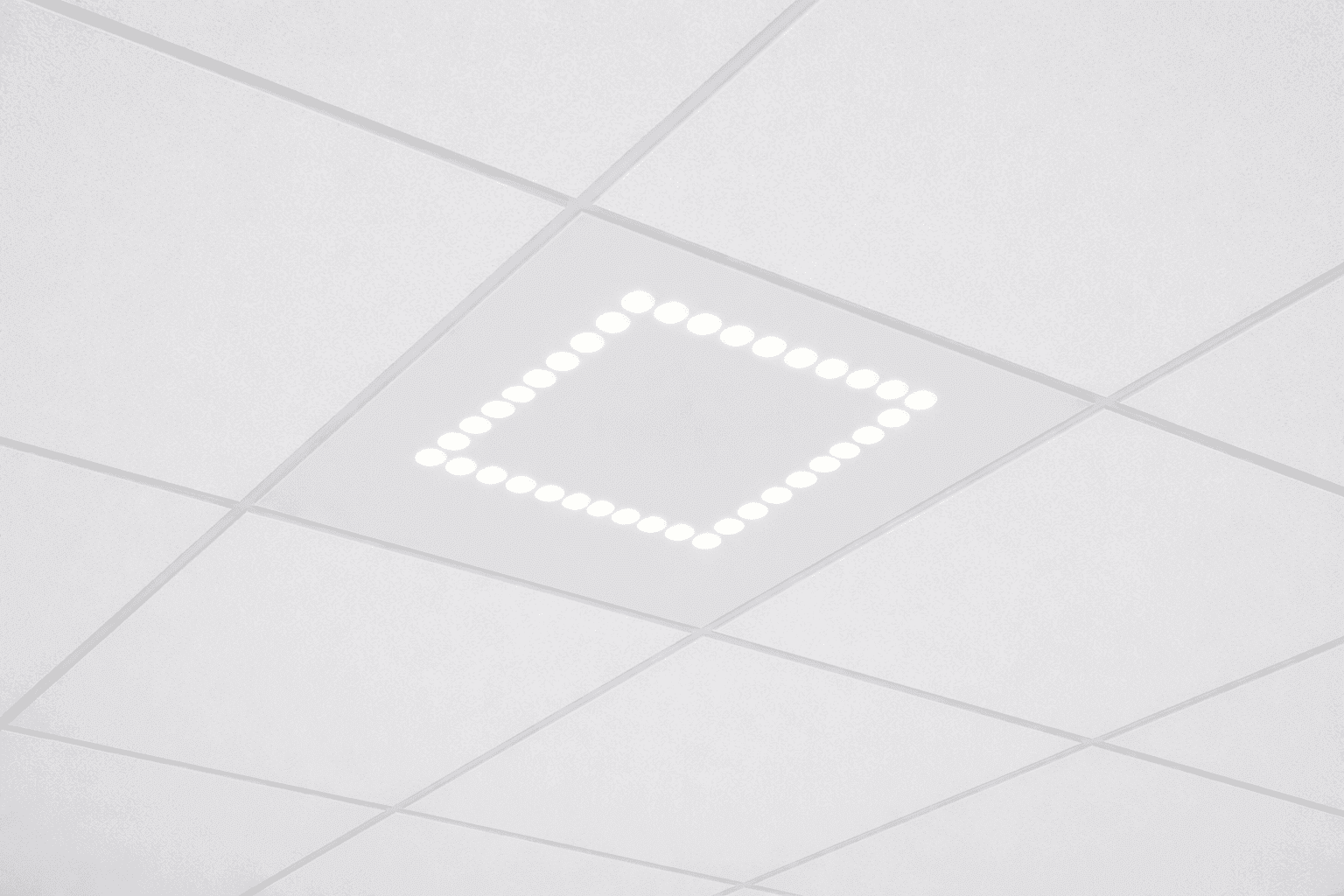

Miro-M Square 600x600 Model 1
Miro-M Square 600x600 Model 1 is a recessed and lay-in luminaire from the Miro range by Atomis. The luminaire is lay-in, directed downward and fitted with a lens with louvre. The range is intended for offices, healthcare, education, public spaces and leisure venues.
- Architectural design with 32 optics
- Choice between UGR <19 and UGR <16 optics
- Louver in matte black and matte white
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Miro-M Square 600x600 Model 1 is a recessed and lay-in luminaire from the Miro range by Atomis. The luminaire is lay-in, directed downward and fitted with a lens with louvre. The range is intended for offices, healthcare, education, public spaces and leisure venues.
With the Miro-M Square 600x600 Model 1 you choose architectural lighting that unites design and light quality within the Miro family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Miro-M Square 600x600 Model 1 is a recessed and lay-in luminaire from the Miro range by Atomis. The luminaire is lay-in, directed downward and fitted with a lens with louvre. The range is intended for offices, healthcare, education, public spaces and leisure venues.
Specifications
- Category
- Recessed & lay-in luminaires
- Brand
- Atomis
- Mounting type
- Lay-in
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- 595x595mm
- Material
- Steel (housing)
- Optics
- Lens met Louver
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Efficiency
- >140lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Square
- Orientation
- Downward
- Cut-out / recess size
- 595x595mm
- Mounting depth
- 35mm
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker
- 50
- Options
- 93 100 100 100 100, Attached to the luminaire, BST 14i2, Europlug, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), Remote driver, Downward, On request, On the driver, Optional, SDCM=3, Square
