Atomis product variant
Zumo 35 vario Black

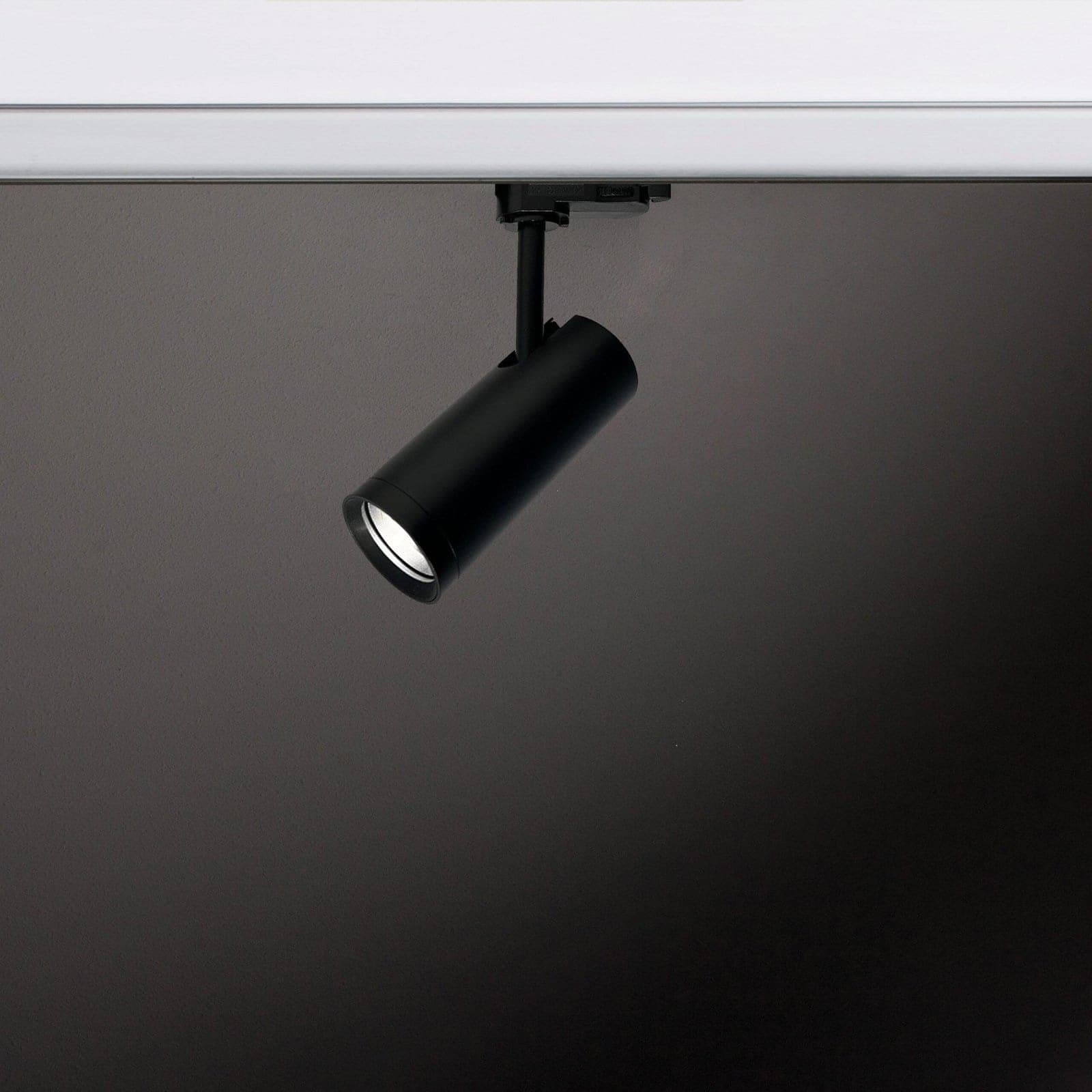

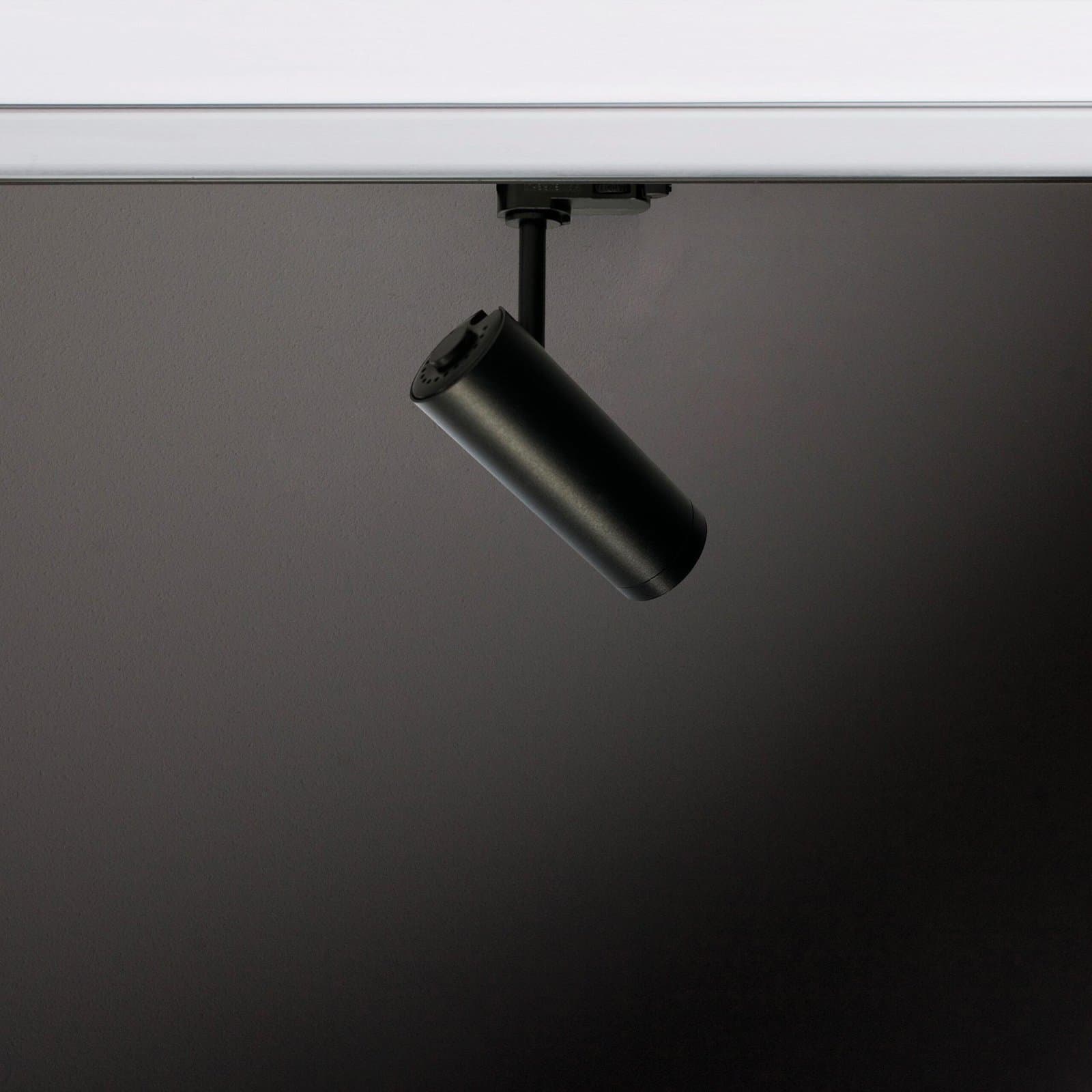

Zumo 35 vario black is a track luminaire from the Zumo range by Atomis. The luminaire is track, fully adjustable and fitted with Zoomlens. The range is intended for offices, museums, public spaces and leisure venues.
- Compact design LED spot (ø30 mm) for standard track systems
- High colour rendering index (CRI >97)
- Continuously adjustable beam from 8° spot to 40° wide flood
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Zumo 35 vario black is a track luminaire from the Zumo range by Atomis. The luminaire is track, fully adjustable and fitted with Zoomlens. The range is intended for offices, museums, public spaces and leisure venues.
With the Zumo 35 vario Black you choose architectural lighting that unites design and light quality within the Zumo family. Engineered for kantoren, museums, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Zumo 35 vario Black is an LED luminaire from the Zumo range by Atomis. The luminaire is suitable for use in offices, museums, public spaces and the leisure sector. Its shape is round. The luminaire is track-mounted and fitted with a zoom lens optic. The housing is made of aluminium, colour RAL9005.
The light source is LED, available in 3000K, 4000K, Tunable white, with a colour rendering of CRI90, CRI97 and a colour consistency of SDCM=2. Dimensions: 35x85mm. Orientation: adjustable. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: geïntegreerd in het armatuur. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar.
Features: Compact design LED spot (ø30 mm) for standard track systems; High colour rendering index (CRI >97); Continuously adjustable beam from 8° spot to 40° wide flood.
Specifications
- Category
- Track luminaires
- Brand
- Atomis
- Mounting type
- Track
- Application type
- Kantoren, Musea, Public spaces, Vrijetijdssector
- Dimensions
- 35x85mm
- Material
- Aluminium (housing)
- Optics
- Zoom lens
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI90, CRI97
- Colour temperature (CCT)
- 3000K, 4000K, Tunable white
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- N/A
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Efficiency
- >60/lmW
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9005
- Shape
- Round
- Orientation
- Adjustable
- ANSI/IES TM-30-18
- Erkend
- Colour consistency (SDCM)
- SDCM=2
- Driver position
- Geïntegreerd in het armatuur
- Flicker
- < 3%
- Primary connections
- 3-fase track adapter, 5-fase track adapter
- Optic material
- PC
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Max. units per B16 breaker (in standard configuration)
- 36
- Max. units per C16 breaker (in standard configuration)
- 80
