Atomis product variant

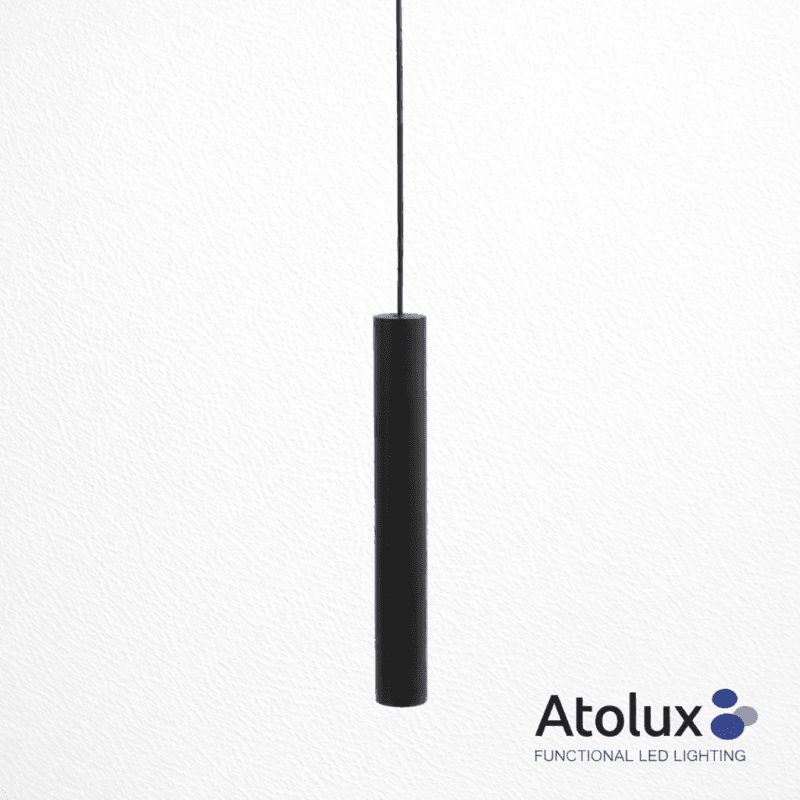

Cylus 40 black
The Cylus 40 black is a premium architectural LED luminaire, specially designed for modern offices, town halls, public spaces, reception desks and welcome areas. Thanks to its elegant tubular design of just 40 mm, made from durable aluminium, this luminaire offers a perfect balance between design, performance and functionality.
- Slim 40 mm aluminium light tube
- Comfortable reflector optic for task and accent lighting
- Integrated driver for a clean, trouble-free design
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Cylus 40 black
With the Cylus 40 black you choose architectural lighting that unites design and light quality within the Cylus family. Engineered for hospitality, offices, education, public spaces, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
Additional information
- Ambient temperature
- -20°C / +40°C
- Power factor
- >9
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
The Cylus 40 black is a premium architectural LED luminaire, specially designed for modern offices, town halls, public spaces, reception desks and welcome areas. Thanks to its elegant tubular design of just 40 mm, made from durable aluminium, this luminaire offers a perfect balance between design, performance and functionality. - Slim 40 mm aluminium light tube - Comfortable reflector optics for task and accent lighting - Integrated driver for a clean, interference-free design - Ideal for offices, public buildings, reception desks, entrances and waiting areas - Modern look in a durable matt black finish - surface-mounted or recessed module optional. - Designed for long-term reliability and professional projects
Specifications
- Category
- Pendant luminaires
- Brand
- Atolux
- Mounting type
- Pendant
- Application type
- Hospitality, Office, Education, Public spaces
- Material
- Acrylic, Aluminium, Steel
- Optics
- Reflector
- UGR
- <19
- IP class
- IP20 (naar boven)/IP40 (naar beneden)
- Colour rendering (CRI)
- CRI80, CRI90, CRI97
- Colour temperature (CCT)
- 2700K, 3000K, 3500K, 4000K
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- 100lm-w
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- 220-240V, 50 / 60Hz, 93 100 100 100 100, Integrated, Cable, L90B50@60, 000h (Tq 25°C), N/A, Downward, On request, Round, SDCM=2
