Atomis product variant

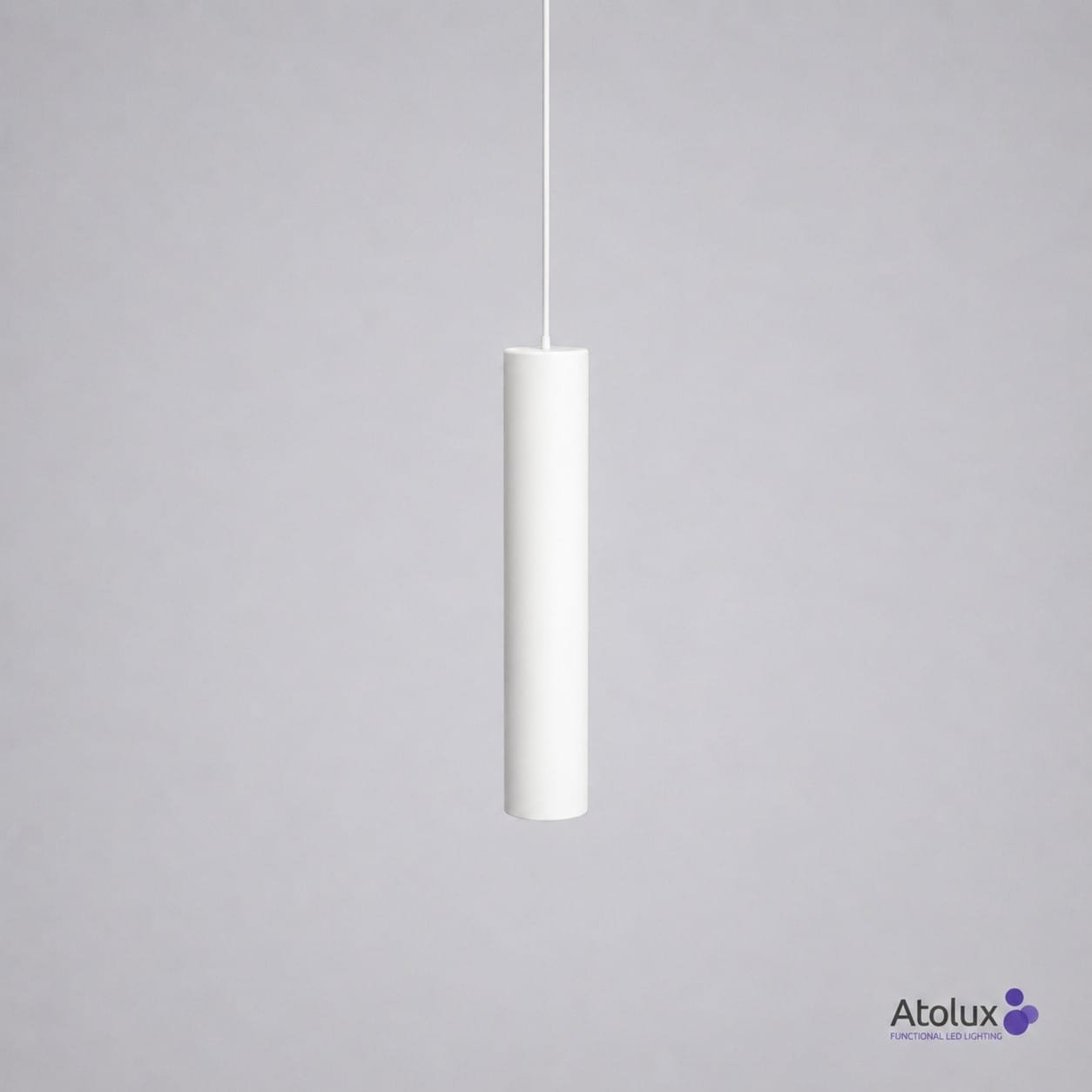

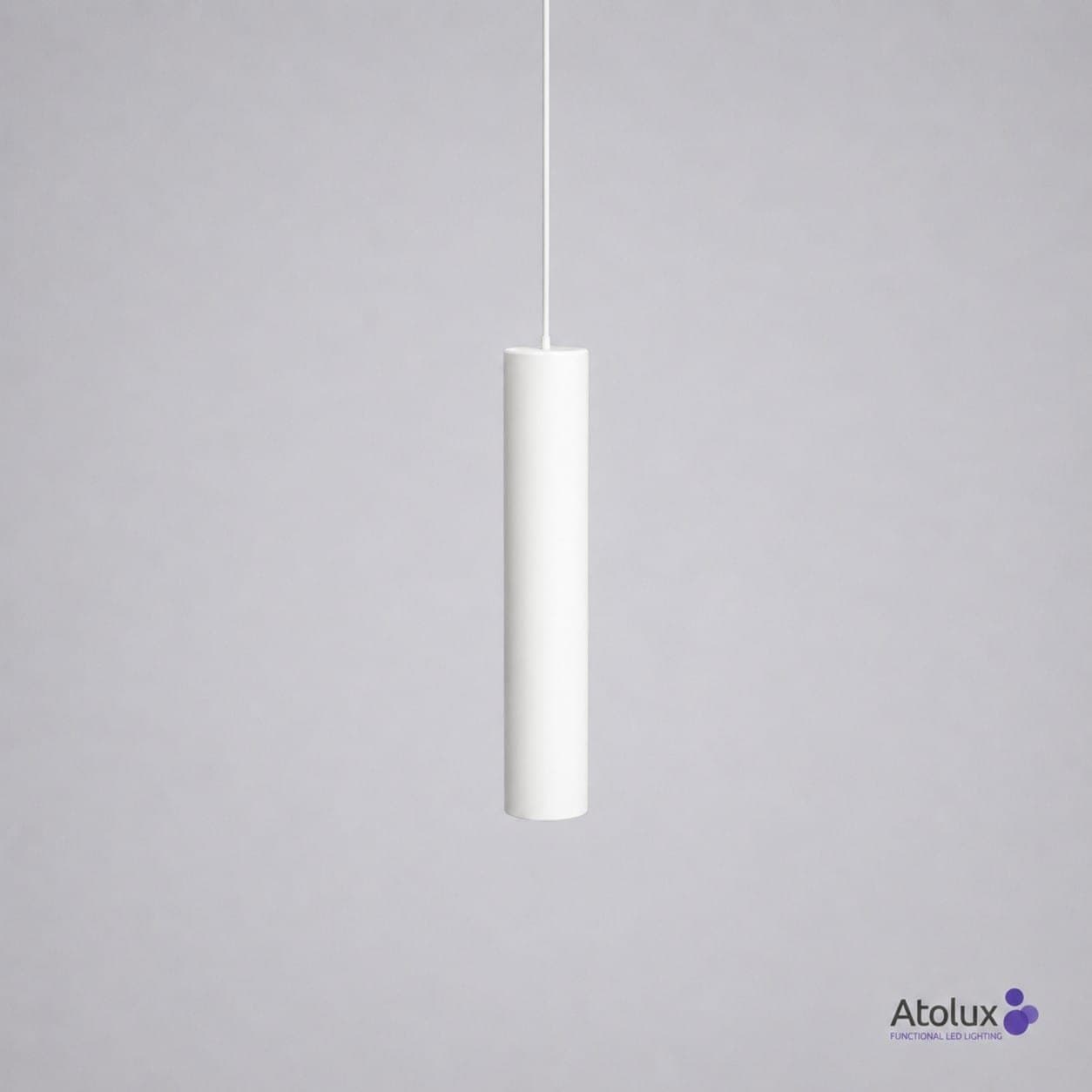

Cylus 50 White
The Cylus 50 White is a premium architectural LED luminaire, specially designed for modern offices, town halls, public spaces, reception desks and welcome areas. Thanks to its elegant tubular design, made from durable aluminium, this luminaire offers a perfect balance between design, performance and functionality.
- Slim 50 mm aluminium light tube
- Comfortable reflector optic for task and accent lighting
- Integrated driver for a clean, trouble-free design
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Cylus 50 white
With the Cylus 50 White you choose architectural lighting that unites design and light quality within the Cylus family. Engineered for kantoren, museums, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Cylus 50 White is an LED luminaire from the Cylus range by Atolux. The luminaire is suitable for use in offices, museums, healthcare, education, public spaces and the leisure sector. Its shape is round. The luminaire is pendant-mounted and fitted with a reflector optic. The housing is made of aluminium, colour RAL9016.
The light source is LED, available in 3000K, 4000K, with a colour rendering of CRI90 and a colour consistency of SDCM=2. Dimensions: 50x300mm. Orientation: downward. Protection rating IP20 (boven) / IP20 (onder), insulation class Class I. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: geïntegreerd in het armatuur. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar.
Features: Slim 50 mm aluminium light tube; Comfortable reflector optic for task and accent lighting; Integrated driver for a clean, trouble-free design.
Specifications
- Category
- Pendant luminaires
- Brand
- Atolux
- Mounting type
- Pendant
- Application type
- Kantoren, Musea, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- 50x300mm
- Material
- Aluminium (housing)
- Optics
- Reflector
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI90
- Colour temperature (CCT)
- 3000K, 4000K
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class I
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016
- Shape
- Round
- Orientation
- Downward
- Colour consistency (SDCM)
- SDCM=2
- Driver position
- Geïntegreerd in het armatuur
- Flicker
- < 3%
- Primary connections
- 3-aderige kabel, 5 aderige kabel, On request
- Optic material
- Acrylic
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Max. units per B16 breaker (in standard configuration)
- 36
- Max. units per C16 breaker (in standard configuration)
- 80
