Atomis product variant
Fusion-Grill

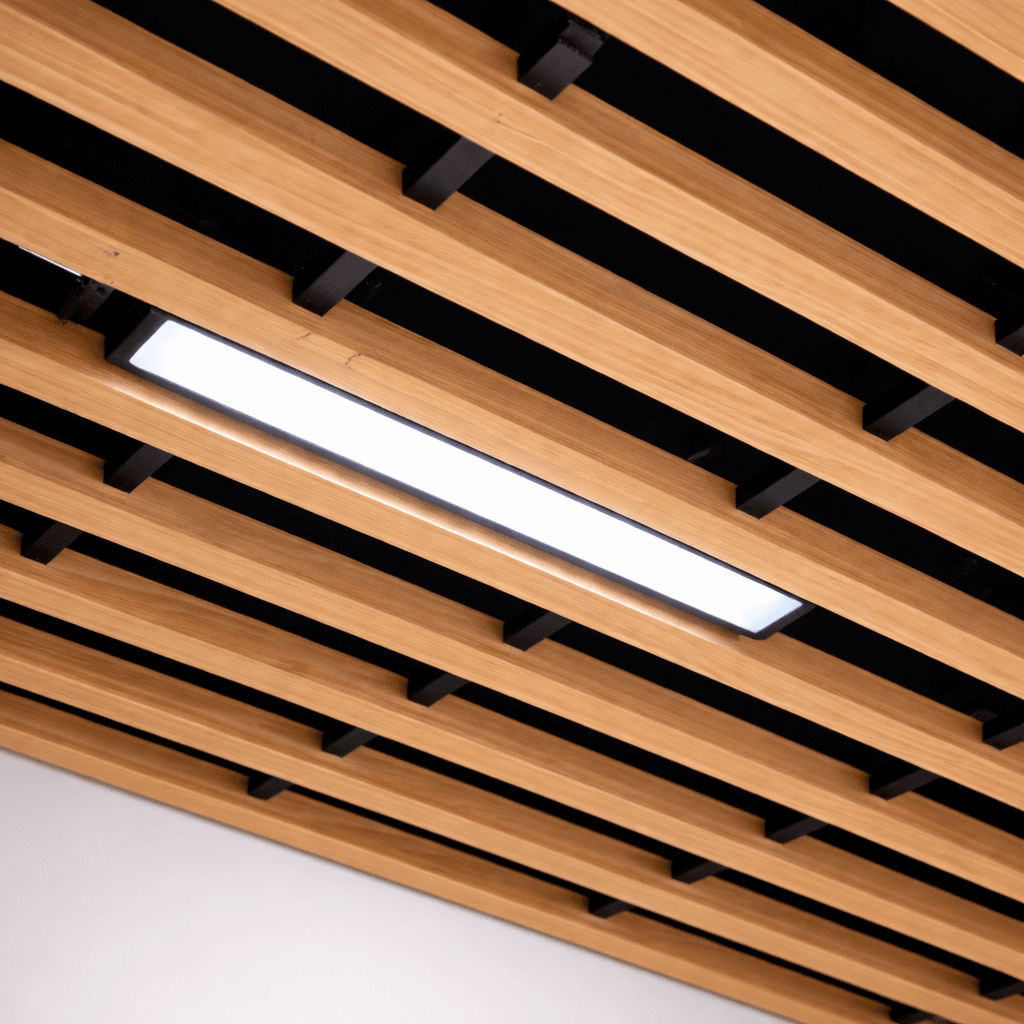

Fusion-Grill is a compact luminaire with a microprismatic lens, developed for installation in system ceilings. This luminaire is available in various sizes (width and length) with a matt finish to suit the different types of grill ceilings on the market.
- Compact luminaire for modular ceilings
- Custom luminaire available with dimensions on request
- Micro-prismatic lens (UGR <19)
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Fusion-Grill
With the Fusion-Grill you choose architectural lighting that unites design and light quality within the Fusion family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Fusion-Grill is a compact luminaire with a microprismatic lens, developed for installation in system ceilings. This luminaire is available in various sizes (width and length) with a matt finish to suit the different types of grill ceilings on the market. - Compact luminaire for system ceilings - Custom luminaire available with dimensions on request - Microprismatic lens (UGR < 19) - Matt black or matt white textured powder coating
Specifications
- Category
- Baffle luminaires
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- Steel (housing)
- Optics
- Microprisma
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Cut-out / recess size
- On request
- Mounting depth
- On request
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker
- 50
