Atomis product variant
Fusion-Track

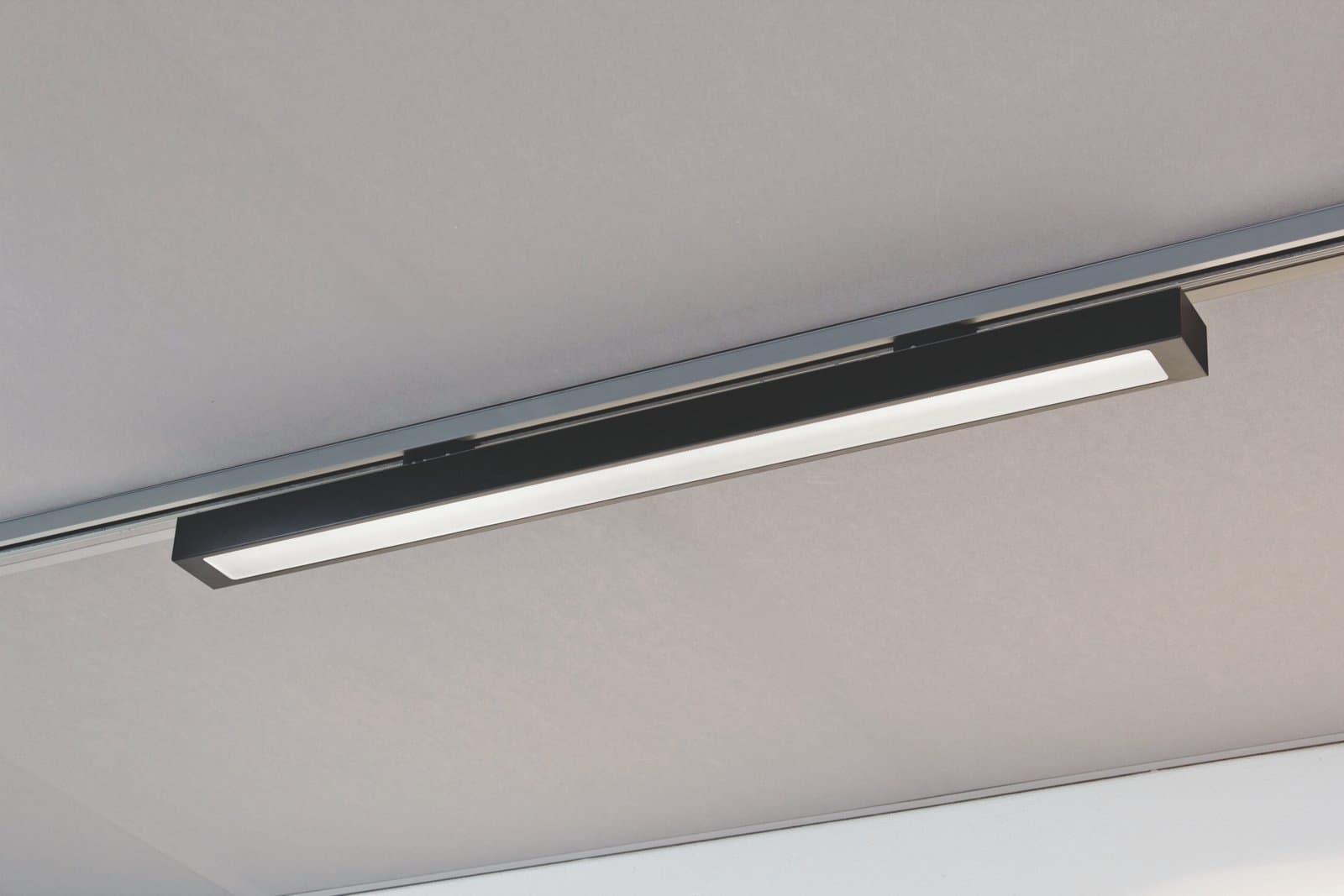

Fusion-Track is a surface-mounted luminaire with a track adapter for direct mounting on three-phase track. Fusion offers an elegant and effective lighting solution with high light levels. The optics of the Fusion-Track feature a microprismatic lens with low surface luminance (UGR < 19) for even and comfortable lighting.
- Easy mounting on new or existing track
- Architectural look
- Equipped with a prismatic lens (UGR <19) or an opal diffuser
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Fusion-Track
With the Fusion-Track you choose architectural lighting that unites design and light quality within the Fusion family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, retail, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Fusion-Track is an LED luminaire from the Fusion range by Atomis. The luminaire is suitable for use in offices, healthcare, education, public spaces, the leisure sector and retail. Its shape is rectangular. The luminaire is track-mounted and fitted with a microprisma optic with low glare (UGR <19). The housing is made of steel, colour RAL9016, RAL9005, On request.
The light source is LED, available in 2700K, 3000K, 4000K, Tunable white, op aanvraag, with a colour rendering of CRI80, CRI90 and a colour consistency of SDCM=3. Dimensions: 80x1200mm. Orientation: downward. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: geïntegreerd in het armatuur. Emergency lighting: 1-hour emergency power, 1 uur autonomie autotest. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar. This product is manufactured in the Netherlands.
Features: Easy mounting on new or existing track; Architectural look; Equipped with a prismatic lens (UGR <19) or an opal diffuser.
Specifications
- Category
- Track luminaires
- Brand
- Atomis
- Mounting type
- Track
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector, Retail
- Dimensions
- 80x1200mm
- Material
- Steel (housing)
- Optics
- Microprisma
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1-hour emergency power, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- Geïntegreerd in het armatuur
- Flicker
- < 3%
- Primary connections
- 3-fase track adapter, 5-fase track adapter
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker (in standard configuration)
- 50
- Max. units per C16 breaker (in standard configuration)
- 80
