Atomis product variant

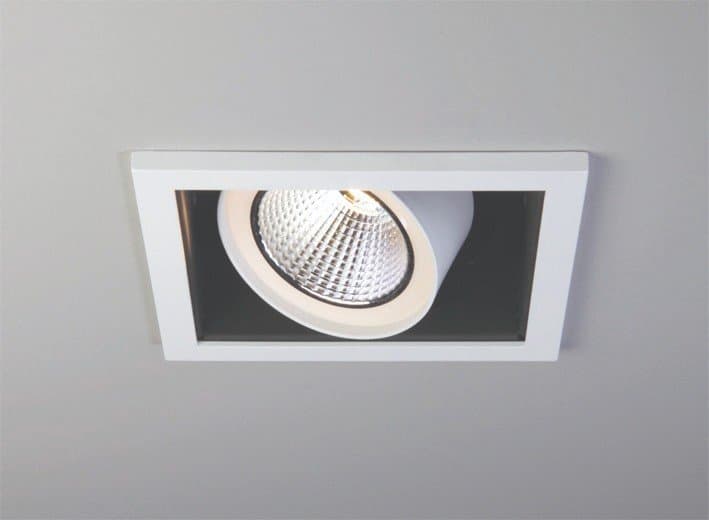

Meson square 180 Cardanic
Meson square 180 Cardanic is a downlight and recessed spotlight from the Meson range by Atomis. The luminaire is recessed, fully adjustable and fitted with a reflector. The range is intended for offices, healthcare, education, public spaces and leisure venues.
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Meson square 180 Cardanic is a downlight and recessed spotlight from the Meson range by Atomis. The luminaire is recessed, fully adjustable and fitted with a reflector. The range is intended for offices, healthcare, education, public spaces and leisure venues.
With the Meson square 180 Cardanic you choose architectural lighting that unites design and light quality within the Meson family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
Not available yet.
Specification text
Meson square 180 Cardanic is a downlight and recessed spotlight from the Meson range by Atomis. The luminaire is recessed, fully adjustable and fitted with a reflector. The range is intended for offices, healthcare, education, public spaces and leisure venues.
Specifications
- Category
- Downlights & recessed spots
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- 180x180mm
- Material
- Staal (behuizing)
- Optics
- Reflector
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Square
- Orientation
- Adjustable
- Cut-out / recess size
- 170x170mm
- Mounting depth
- 140mm
- Colour consistency (SDCM)
- SDCM=2
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- Acrylic
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geassembleerd in Nederland
- Max. units per B16 breaker
- 36
