Atomis product variant
Metronome-S White
Metronome-S white is a linear LED pendant luminaire fitted with 36 or 28 lenses, recessed behind a louvre grille. The optics are on the underside as standard, and direct/indirect (UP/DOWN) versions are also available. A choice can be made between UGR < 19 optics (standard) and UGR < 16.
- Architectural look with 36 or 28 optics
- Choice between UGR <19 and UGR <16 optics
- Louver finish in white
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Metronome-S white
With the Metronome-S White you choose architectural lighting that unites design and light quality within the Metronome family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.

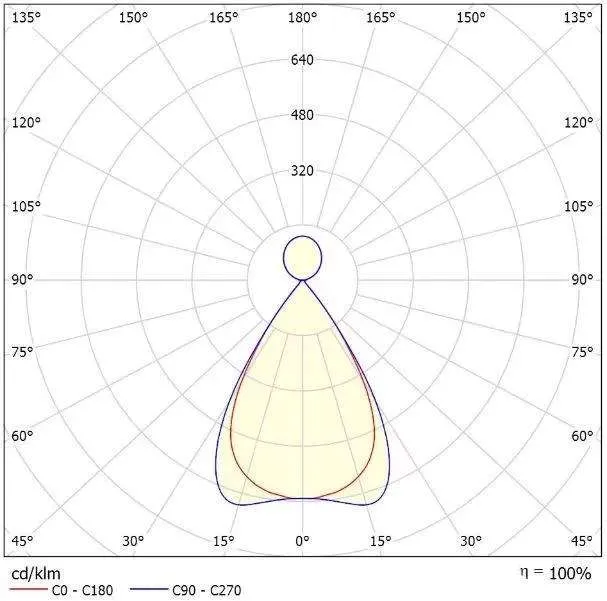

LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Metronome-S White is an LED luminaire from the Metronome range by Atomis. The luminaire is suitable for use in offices, healthcare, education, public spaces and the leisure sector. Its shape is rectangular. The luminaire is pendant-mounted and fitted with a lens met louver optic with low glare (UGR <19). The housing is made of steel, colour RAL9016, RAL9005, On request.
The light source is LED, available in 2700K, 3000K, 4000K, Tunable white, op aanvraag, with a colour rendering of CRI80, CRI90 and a colour consistency of SDCM=3. Dimensions: Op aanvraag. Orientation: downward, down/up. Protection rating IP20 (boven) / IP20 (onder), insulation class Class I. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: geïntegreerd in het armatuur. Emergency lighting: 1-hour emergency power, 1 uur autonomie autotest. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar. This product is manufactured in the Netherlands.
Features: Architectural look with 36 or 28 optics; Choice between UGR <19 and UGR <16 optics; Louver finish in white.
Specifications
- Category
- Pendant luminaires
- Brand
- Atomis
- Mounting type
- Pendant
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- Steel (housing)
- Optics
- Lens met Louver

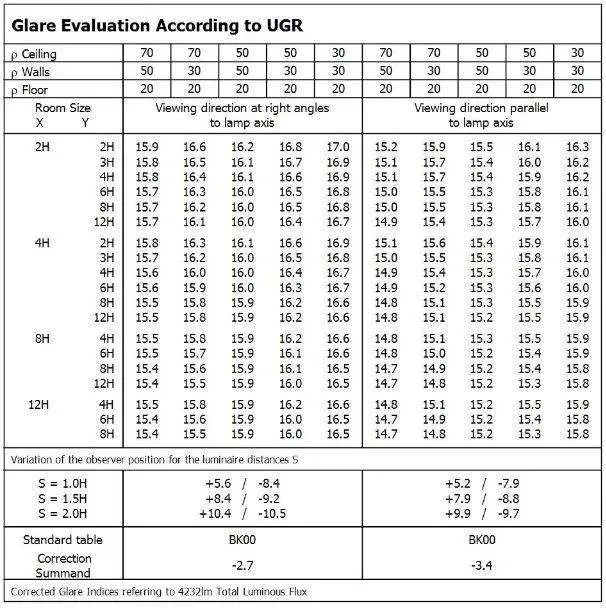

- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1-hour emergency power, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class I
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward, Down/up
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- Geïntegreerd in het armatuur
- Flicker
- < 3%
- Primary connections
- 3-aderige kabel, 5 aderige kabel, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker (in standard configuration)
- 50
- Max. units per C16 breaker (in standard configuration)
- 80
