Oxo 35-SAPP

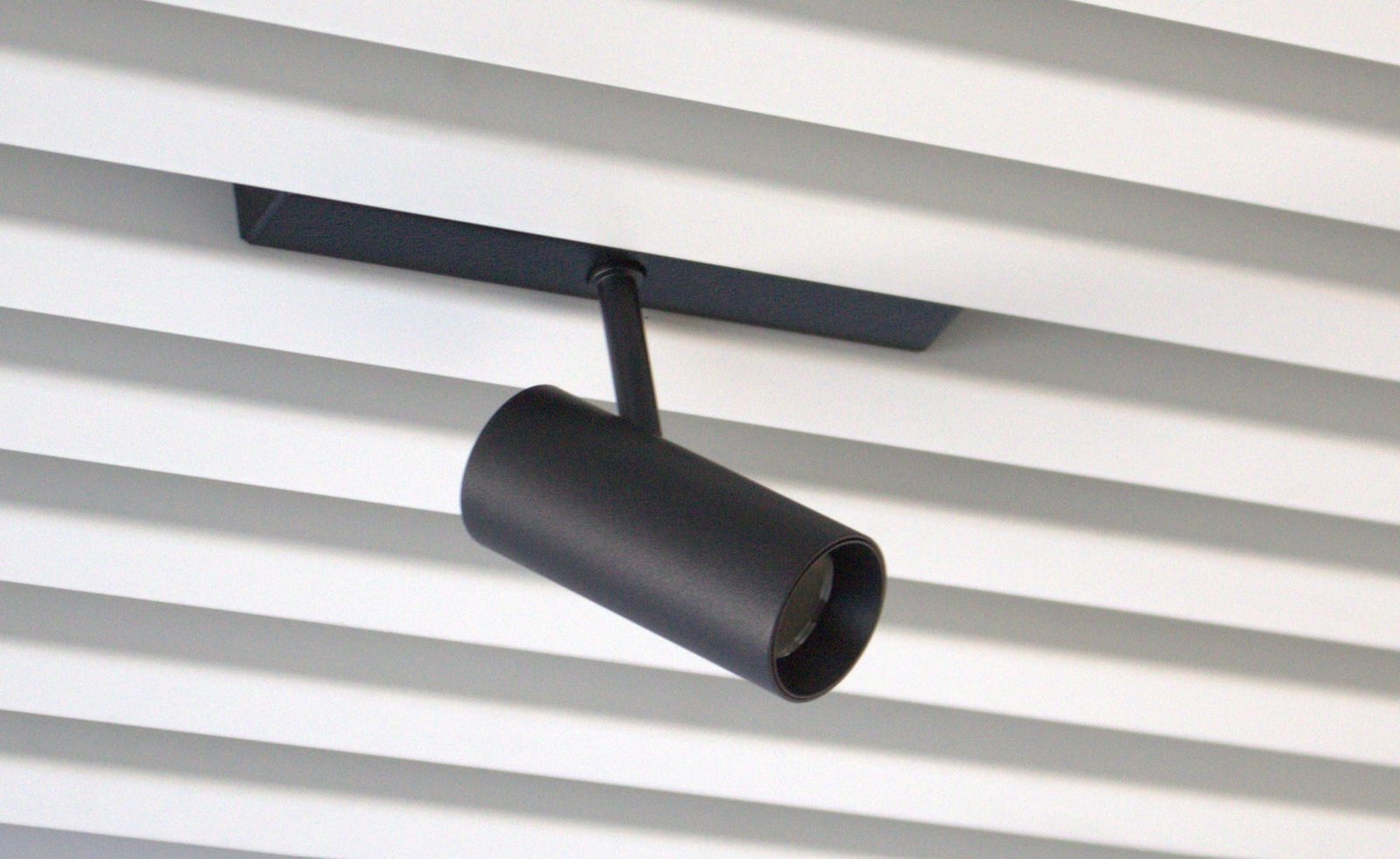

Oxo 35-SAPP is a climate ceiling and baffle luminaire from the Oxo range by Atolux. The luminaire is lay-in, fully adjustable and fitted with Lens. The range is intended for offices, museums, public spaces, leisure venues and retail.
- Miniature adjustable spot (ø35 mm)
- Equipped with a 36° FWHM lens
- High colour rendering index (CRI >90)
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Oxo 35-SAPP is a climate ceiling and baffle luminaire from the Oxo range by Atolux. The luminaire is lay-in, fully adjustable and fitted with Lens. The range is intended for offices, museums, public spaces, leisure venues and retail.
With the Oxo 35-SAPP you choose architectural lighting that unites design and light quality within the Oxo family. Engineered for kantoren, museums, public spaces, vrijetijdssector, retail, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Oxo 35-SAPP is an LED luminaire from the Oxo range by Atolux. The luminaire is suitable for use in offices, museums, public spaces, the leisure sector and retail. Its shape is round. The luminaire is lay-in-mounted and fitted with a lens optic. The housing is made of aluminium, colour RAL9016, RAL9005, On request.
The light source is LED, available in 3000K, 4000K, with a colour rendering of CRI90 and a colour consistency of SDCM=2. Dimensions: 35mm. Orientation: adjustable. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: losliggend met plug & play aansluiting. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar.
Features: Miniature adjustable spot (ø35 mm); Equipped with a 36° FWHM lens; High colour rendering index (CRI >90).
Specifications
- Category
- Klimaatplafond armaturen, Lamel armaturen
- Brand
- Atolux
- Mounting type
- Lay-in
- Application type
- Kantoren, Musea, Public spaces, Vrijetijdssector, Retail
- Dimensions
- 35mm
- Material
- Aluminium (housing)
- Optics
- Lens
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI90
- Colour temperature (CCT)
- 3000K, 4000K
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Round
- Orientation
- Adjustable
- ANSI/IES TM-30-18
- Erkend
- Colour consistency (SDCM)
- SDCM=2
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PC
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Max. units per B16 breaker (in standard configuration)
- 50
- Max. units per C16 breaker (in standard configuration)
- 80
