Atomis product variant
Oxo-L

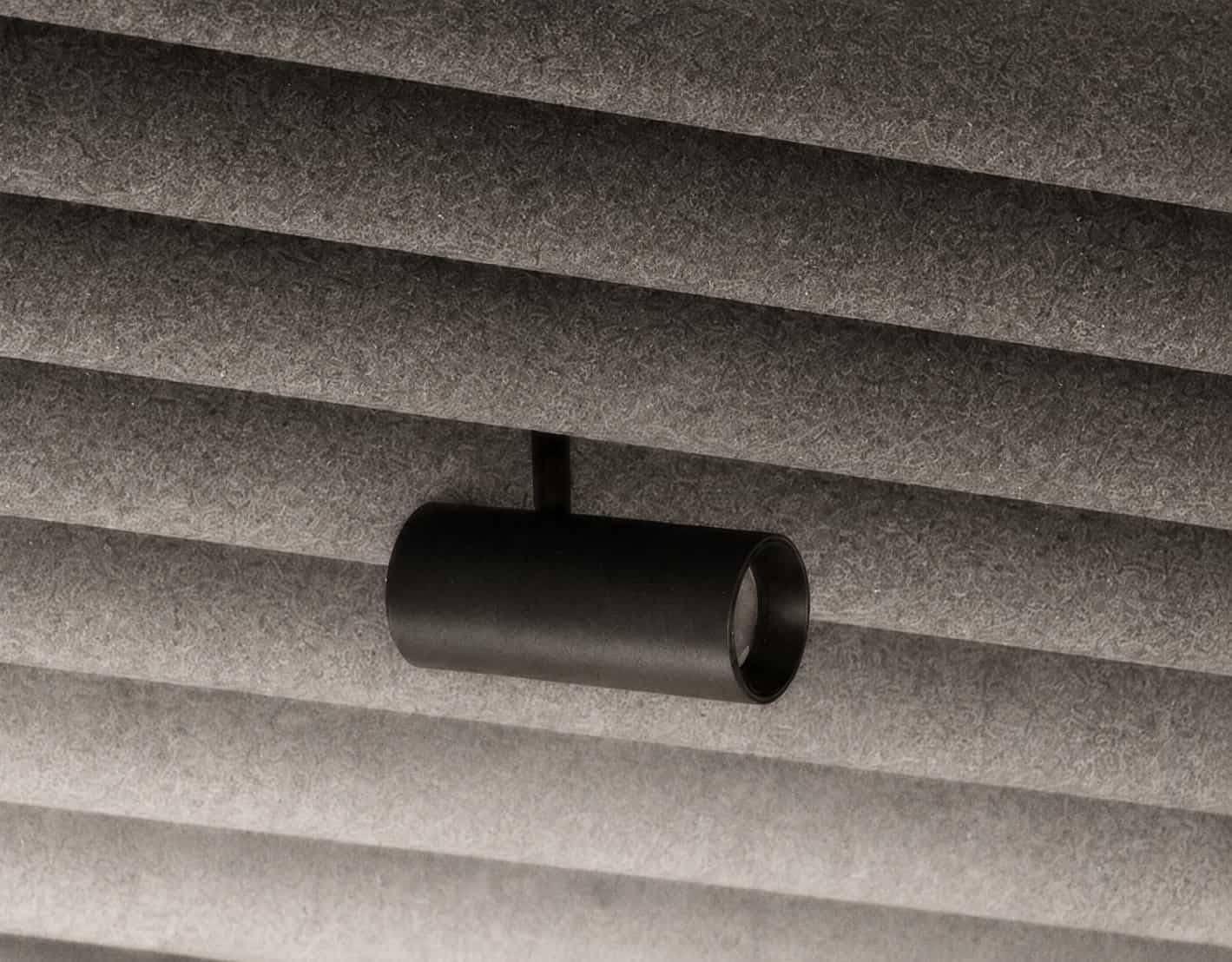

Oxo-L is an adjustable miniature spotlight measuring 35 mm in diameter, designed for use in baffle ceilings. The spotlight is fitted with a 36° FWHM lens and offers a high colour rendering index (CRI above 90).
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Oxo-L is an adjustable 35 mm miniature spotlight for baffle ceilings, with a 36° FWHM lens and colour rendering above CRI90. Available as an on/off version and in a DALI- or Casambi-dimmable version.
With the Oxo-L you choose architectural lighting that unites design and light quality within the Oxo family. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Atomis Oxo-L adjustable miniature spotlight. Round recessed spotlight with a diameter of 35 mm for use in baffle ceilings, fitted with a 36° FWHM lens and a colour rendering index above CRI90. Available as an on/off version and in a DALI- or Casambi-dimmable version.
Specifications
- Category
- Klimaatplafond armaturen, Lamel armaturen
- Brand
- Atolux
- Mounting type
- Recessed
- Material
- Klimaatplafond armaturen, Lamel armaturen
- Optics
- Lens
- UGR
- n-v-t-
- IP class
- IP20 (naar boven)/IP40 (naar beneden)
- Colour rendering (CRI)
- CRI80, CRI90, CRI97
- Colour temperature (CCT)
- 3000K, 4000K
- Dimming / control
- 1-10V dimmable, Casambi dimmable, DALI dimmable, Optional
- Emergency lighting
- 1-hour emergency power, Optional, Optional 1-hour autonomy self-test
- Efficiency
- >70lm/W
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Options
- 93 100 100 100 100, BST 14i2, Europlug, GST18i3, GST18i5 pastelblauw, L90B50@60, 000h (Tq 25°C), Remote driver, N/A, On request, On the driver, Adjustable, Round, SDCM=2
