Atomis product variant

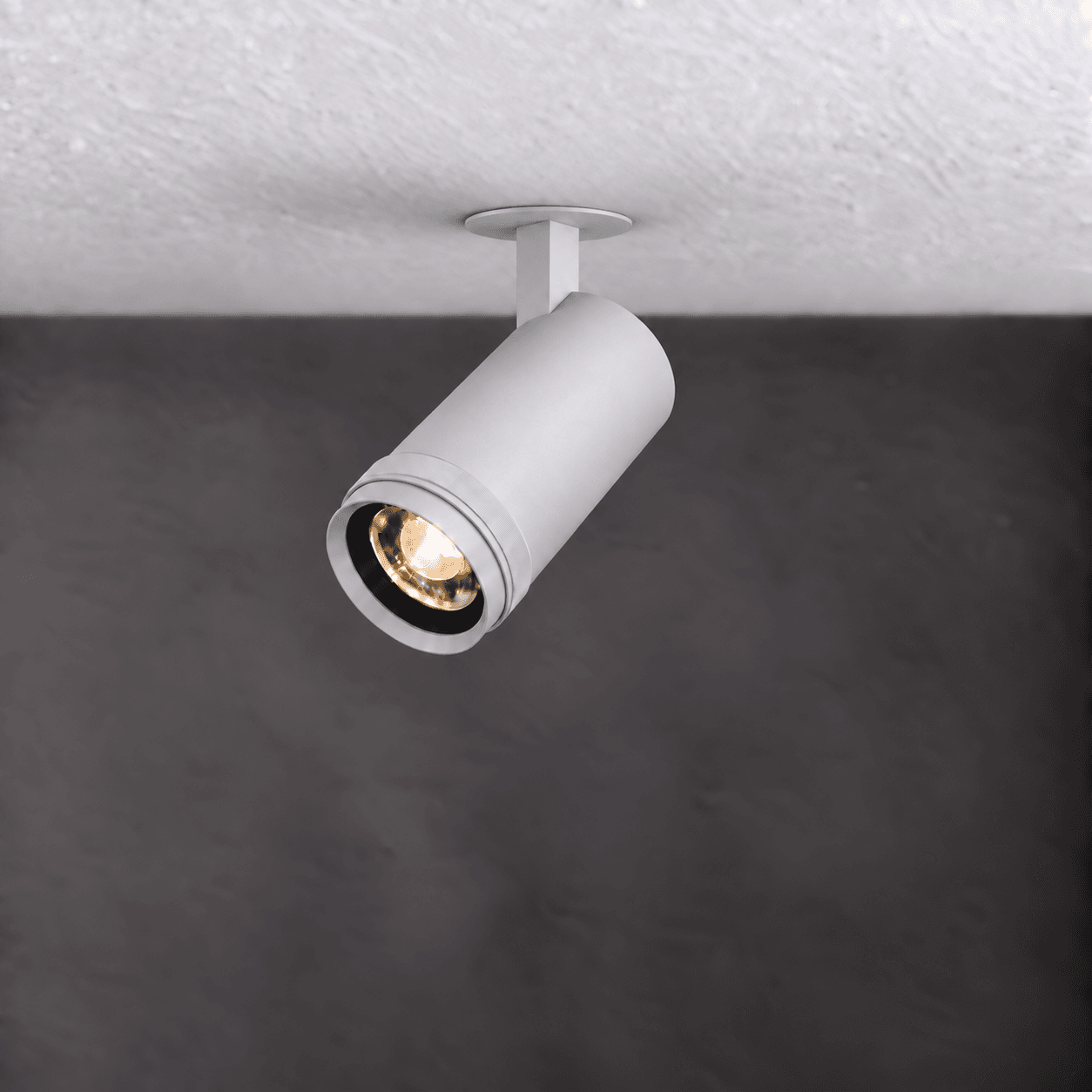

Zumo 60-R Vario White
Zumo 60-R Vario is the recessed version of the Zumo zoom spot. The adjustable LED spot is recessed into the ceiling and offers an adjustable beam via a zoom lens, excellent colour rendering (CRI 90-97) and high colour consistency (SDCM 2). Available in 3000K, 4000K and tunable white, dimmable via DALI-2, 1-10V and Casambi. Ideal for accent and object lighting in offices, museums, public spaces and the leisure sector.
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Zumo 60-R Vario White
With the Zumo 60-R Vario White you choose architectural lighting that unites design and light quality within the Zumo family. Engineered for kantoren, museums, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Zumo 60-R Vario White is an LED luminaire from the Zumo range by Atomis. The luminaire is suitable for use in offices, museums, public spaces and the leisure sector. Its shape is round. The luminaire is recessed-mounted and fitted with a zoom lens optic. The housing is made of aluminium, colour RAL9016.
The light source is LED, available in 3000K, 4000K, Tunable white, with a colour rendering of CRI90, CRI97 and a colour consistency of SDCM=2. Dimensions: 55x140mm. Orientation: adjustable. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: geïntegreerd in het armatuur. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar.
Specifications
- Category
- Downlights & recessed spots
- Brand
- Atomis
- Mounting type
- Recessed
- Application type
- Kantoren, Musea, Public spaces, Vrijetijdssector
- Dimensions
- 55x140mm
- Material
- Aluminium (housing)
- Optics
- Zoom lens
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI90, CRI97
- Colour temperature (CCT)
- 3000K, 4000K, Tunable white
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016
- Shape
- Round
- Orientation
- Adjustable
- ANSI/IES TM-30-18
- Erkend
- Colour consistency (SDCM)
- SDCM=2
- Driver position
- Geïntegreerd in het armatuur
- Flicker
- < 3%
- Primary connections
- 3-fase track adapter, 5-fase track adapter
- Optic material
- PC
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Max. units per B16 breaker (in standard configuration)
- 36
- Max. units per C16 breaker (in standard configuration)
- 80
