Atomis product variant
Stratos-K 100

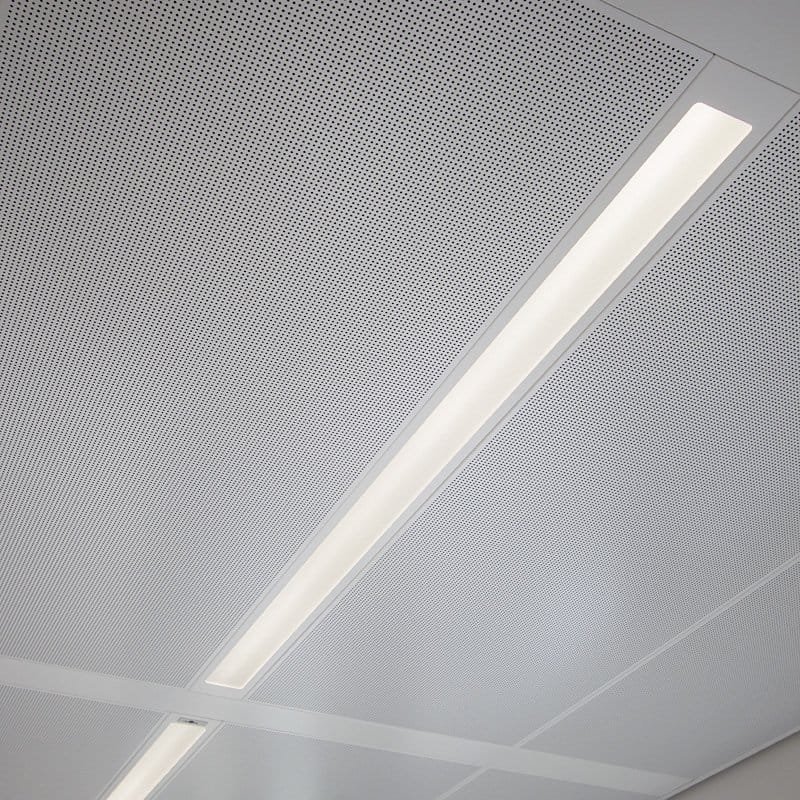

Stratos-K 100 is a linear LED luminaire designed for use in climate ceilings with exposed grid ceilings. The luminaire is shielded by a microprism lens (with low UGR).
- Powder-coated aluminium construction
- Equipped with a prismatic lens (UGR <19)
- Tunable white or melanopic lighting versions available
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Stratos-K 100
With the Stratos-K 100 you choose architectural lighting that unites design and light quality within the Stratos family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Stratos-K 100 is a linear LED luminaire designed for use in climate ceilings with exposed grid ceilings. The luminaire is shielded by a microprism lens (with low UGR). - Powder-coated aluminium construction - Fitted with a prismatic lens (low UGR) - Tunable white or melanopic lighting versions available - C-hook mounting allows easy installation - Suitable for use in offices, schools, care centres and other public facilities.
Specifications
- Category
- Climate ceiling luminaires
- Brand
- Atomis
- Mounting type
- Lay-in
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- (gerecycled) Aluminium (behuizing)
- Optics
- Microprisma
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1 uur noodtroom, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Cut-out / recess size
- On request
- Mounting depth
- On request
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker
- 50
