Stratos-K 70

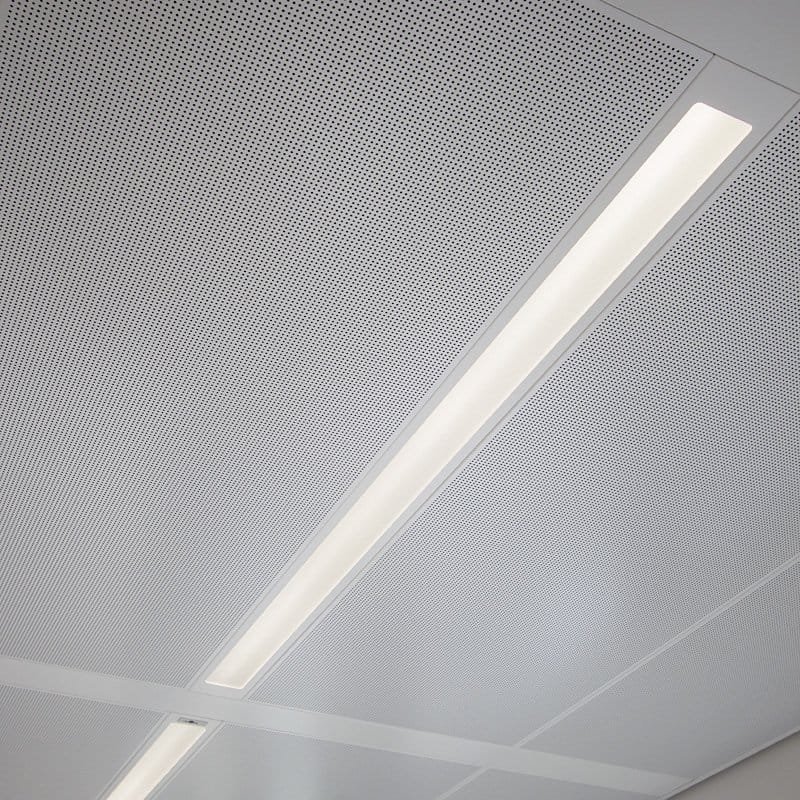

Stratos-K 70 is a linear LED luminaire designed for use in climate ceilings with exposed grid ceilings. The luminaire is shielded by a microprismatic lens (with low UGR).
- Powder-coated aluminium construction
- Equipped with a prismatic lens (UGR <19)
- Tunable white or melanopic lighting versions available
Sales can help with quote requests and project-specific questions.
Back to productsDescription
Stratos-K 70
With the Stratos-K 70 you choose architectural lighting that unites design and light quality within the Stratos family. Engineered for kantoren, healthcare, education, public spaces, vrijetijdssector, it integrates cleanly into the design and delivers comfortable, considered light. Thoughtful detailing and a high-quality finish make it a lasting choice that elevates your project.
LDT / Photometrics downloads
- LDT / Photometrics downloads
All LDT and photometrics downloads are managed centrally per product family.
Specification text
Stratos-K 70 is an LED luminaire from the Stratos range by Atomis. The luminaire is suitable for use in offices, healthcare, education, public spaces and the leisure sector. Its shape is rectangular. The luminaire is lay-in-mounted and fitted with a microprisma optic with low glare (UGR <19). The housing is made of (gerecycled) aluminium, colour RAL9016, RAL9005, On request.
The light source is LED, available in 2700K, 3000K, 4000K, Tunable white, op aanvraag, with a colour rendering of CRI80, CRI90 and a colour consistency of SDCM=3. Dimensions: Op aanvraag. Cut-out: Op aanvraag. Mounting depth: Op aanvraag. Orientation: downward. Protection rating IP20 (boven) / IP20 (onder), insulation class Class II. Supply: 220-240V, 50 / 60Hz. Controlled via aan/uit, DALI-2, 1-10v, Casambi, On request. Driver position: losliggend met plug & play aansluiting. Emergency lighting: 1-hour emergency power, 1 uur autonomie autotest. Ambient temperature: -20°C / +40°C. Product warranty: 5 Jaar. This product is manufactured in the Netherlands.
Features: Powder-coated aluminium construction; Equipped with a prismatic lens (UGR <19); Tunable white or melanopic lighting versions available.
Specifications
- Category
- Climate ceiling luminaires
- Brand
- Atomis
- Mounting type
- Lay-in
- Application type
- Kantoren, Zorg, Education, Public spaces, Vrijetijdssector
- Dimensions
- On request
- Material
- (gerecycled) Aluminium (behuizing)
- Optics
- Microprisma
- UGR
- <19
- IP class
- IP20 (boven) / IP20 (onder)
- Colour rendering (CRI)
- CRI80, CRI90
- Colour temperature (CCT)
- 2700K, 3000K, 4000K, Tunable white, On request
- Dimming / control
- aan/uit, DALI-2, 1-10v, Casambi, On request
- Emergency lighting
- 1-hour emergency power, 1 uur autonomie autotest
- Voltage / frequency
- 220-240V, 50 / 60Hz
- Photobiological safety
- IEC 62471: RG1 (low risk)
- Insulation class
- Class II
- Power factor
- >0.9
- Ambient temperature
- -20°C / +40°C
- Colour
- RAL9016, RAL9005, On request
- Shape
- Rectangular
- Orientation
- Downward
- Cut-out / recess size
- On request
- Mounting depth
- On request
- Colour consistency (SDCM)
- SDCM=3
- Driver position
- losliggend met plug & play aansluiting
- Flicker
- < 3%
- Primary connections
- GST 18i3, GST18i5pb, Europlug, op driver, On request
- Optic material
- PMMA
- Air extraction
- Optional
- Packaging
- Bulkverpakking
- Product warranty
- 5 Jaar
- Production
- Geproduceerd in Nederland
- Max. units per B16 breaker (in standard configuration)
- 50
- Max. units per C16 breaker (in standard configuration)
- 80
